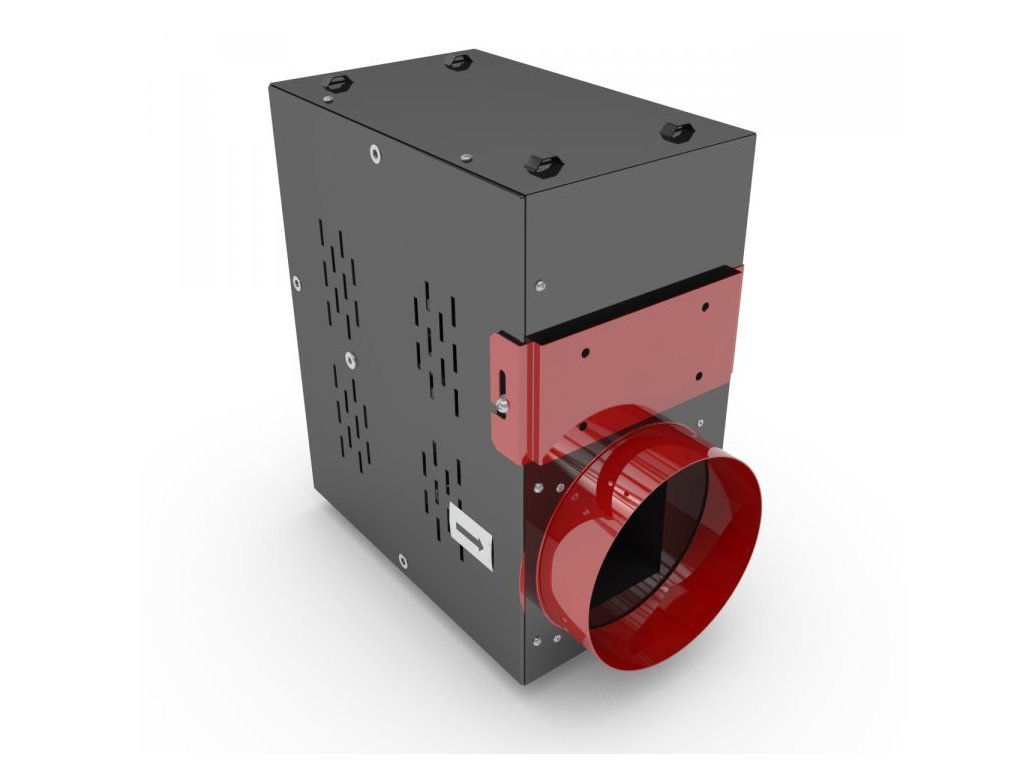

Black Orchid - Acoustica - Inline Box Fan 400-850m3/h

Code: 9045/100
from €231 from €190,91 excl. VAT

Choose variant

Heavy-duty, high-performance fans, 400-850m3 / h. Black Orchid Acoustica Box Fans are extremely powerful, but still keep quiet.

Detailed information

Diameter: 100 mm
In stock (> 5 pcs) | 9045/100
Delivery to: 21.11.2019
€231
€190,91 excl. VAT
Diameter: 125 mm
In stock (> 5 pcs) | 9045/125
Delivery to: 21.11.2019
€242
€200 excl. VAT
Diameter: 150 mm
In stock (> 5 pcs) | 9045/150
Delivery to: 21.11.2019
€385
€318,18 excl. VAT
Diameter: 200 mm
In stock (> 5 pcs) | 9045/200
Delivery to: 21.11.2019
€423
€349,59 excl. VAT

Product detailed description

They consist of a centrifugal fan mounted in an acoustically insulated galvanized box ending with outlets with a rubber seal for perfect sealing of the connected pipe. The acoustic noise reduction of this fan series makes them the ideal choice for areas where absolutely quiet fan operation is required.

Higher airflow. Higher pressure resistance for connection with carbon filters and similar products. Extremely quiet operation.

Function:

  • Four sizes for maximum selection: 100, 125, 150 and 200 mm
  • Extremely silent galvanized acoustic fan box
  • Excellent resistance to resistance when connected to long pipes
  • Airflow from 400m3 to 850m3
  • Termination is by plugging into a mains plug with a 1.8 m long cable
  • All fans are equipped with a handle mechanism and feet for perfect lifting and installation.
  • Durable Long-life Blauberg German engine and thermal protection for maximum safety and prevent burnout.

Diameter  Speed (RPM) max.Flow max.Pressure drop Engagement Cost of operation/1hr Volume
100mm 2650 400m3 380 Pa EU socket 0,003 € 36dB(A) @ 3m
125mm 2650 530m3 400 Pa EU socket 0,004 € 38dB(A) @ 3m
150mm 2600 730m3 590 Pa EU socket 0,007 € 39dB(A) @ 3m
200mm 1300 850m3 270 EU socket 0,017 € 29dB(A) @ 3m
