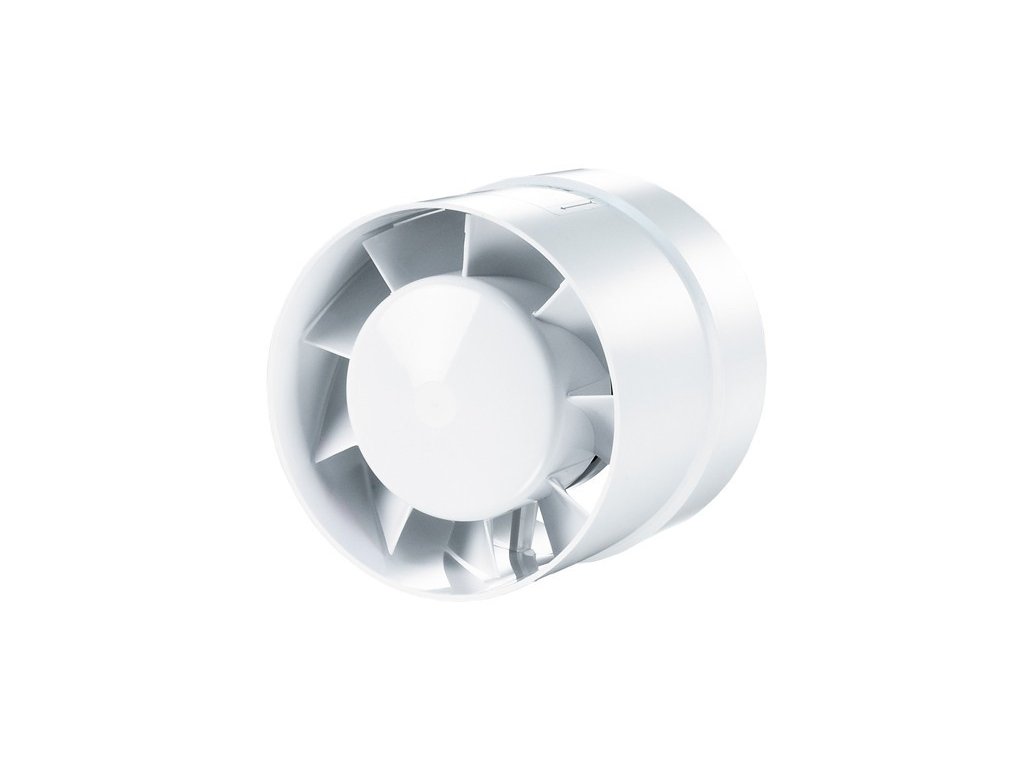

Ventilator VKO 150, 298m3/h, D=150, D1=154 mm

Code: 1476
€21,12 €17,45 excl. VAT
Stock in Europe (> 5 pcs)
Delivery to:
13.12.2019

Small VKO 150 fan duct made of plastic to short pipes or suction directly across the wall. Suitable for air extraction and extraction. Pipe diameter 150 mm.

Detailed information

Product detailed description

The VKO 150 plastic fan is designed for very small residential, office, production or work spaces. The fan casing is made of durable ABS plastic as well as axial blades. Due to its technical parameters and output of 298m3 / h, this reduced fan is suitable for use for shorter ventilation ducts with low pressure loss, or for exhausting directly across the wall. The small VKO 150 is designed to be compatible with all types of 150 mm diameter air ducts. The fan can be used for both inlet and outlet. The absence of ball bearings allows only horizontal engagement. Before installing, pay attention to the enclosed Czech instructions.

SPECIFICATIONS OF AXIAL FOIL FAN VKO 150:
consumption (power) 24W
voltage 220-240V
output 298m3 / h 2400 rpm
static pressure 90 Pa
sound pressure level 40 dB (A)
weight 0,41 kg
maximum operating temperature 40 degrees
recommended maximum pipe length of 10m
protection against overheating
IP X4 protection

Additional parameters

Category: AIR CONDITIONING
Fan flow: up to 500 m3/h
Flange: 150mm
Flow: 298m3/h
