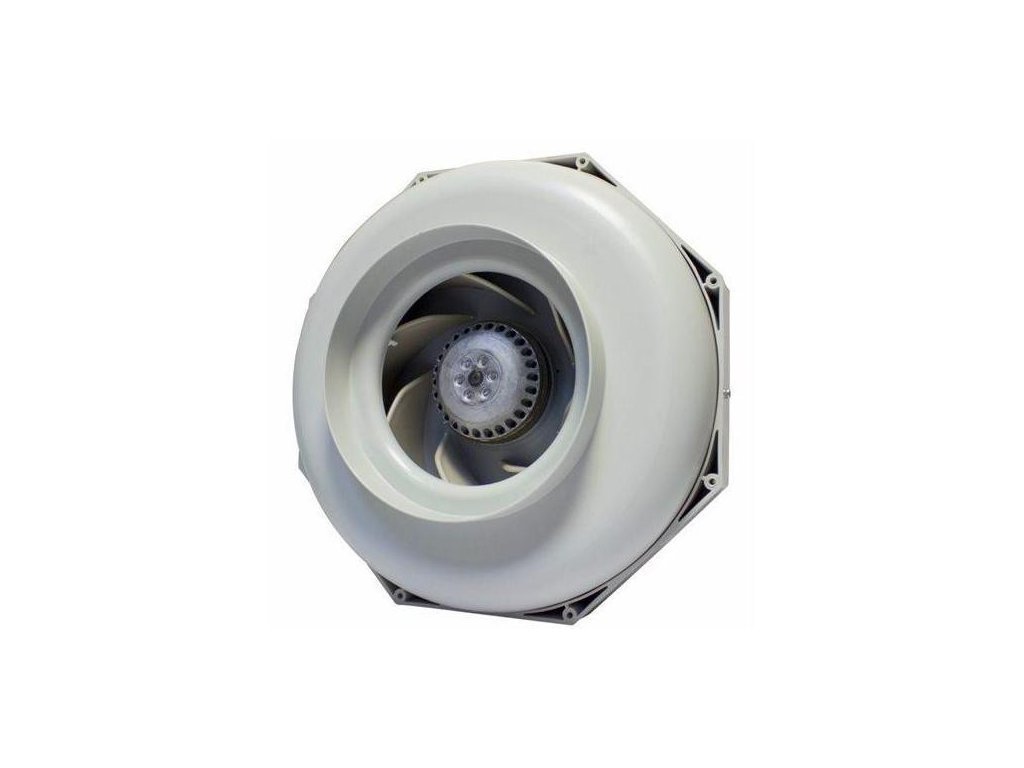

Can-Fan RK 160 LS (810 m3/h, ?160 mm, 4-speed)

Ruck RK 160LS is a radial fan of the UFO type, which is suitable for ventilation of growing spaces, family houses, sanitary facilities, offices, restaurants or smaller industrial spaces such as warehouses, etc.

Availability Stock in Europe
Delivery to:
5.4.2024
Code: CF-5160108204
€159,12
Can-Fan RK 160 LS (810 m3/h, ?160 mm, 4-speed)

Ruck RK 160LS is a radial fan of the UFO type, which is suitable for ventilation of growing spaces, family houses, sanitary facilities, offices, restaurants or smaller industrial spaces such as warehouses, etc. The fan has an asynchronous motor with an external rotor. The motor is single-phase with thermal protection against overheating. The stator with corrosion protection, which is equipped with metal backward-curved blades, is housed in a plastic housing (PA6, RAL 7035).

The fan is adjustable by means of a speed controller - 4 stages, no other transformers or speed controllers are needed. Changing the speed is possible using a switch connected to the fan. The fan has a built-in thermal contact and terminal block. Ruck RK 160LS can be installed in any position thanks to ball bearings, which ensure a long life of the fan. The piping connection should be flexible to prevent the transmission of vibrations to the air ducts.

The maximum operating air temperature is 50 ° C.

Parameters

Voltage 230 V
Current 0.5 A
Flow DO Up to 1500 m3 / h, Up to 1000 m3 / h
Flow OD From 250 m3 / h, From 500 m3 / h
Power consumption 102 W
Flange 160mm
4 speed speed control
Radial technology
Output (flow) 810 m3 / h
