Gavita Master Controller EL1

Convenient lighting control is at your fingertips. By controlling e-series luminaires with the Gavita Master control unit, you can easily gain full control over your lighting with maximum safety and ease of installation and use.
Availability Stock in Europe
Delivery to:
5.4.2024
Code: GV-MC-EL1
€315,92
Gavita Master Controller EL1

Convenient lighting control is at your fingertips. By controlling e-series luminaires with the Gavita Master control unit, you can easily gain full control over your lighting with maximum safety and ease of installation and use.

Gavita Master EL1 control unit

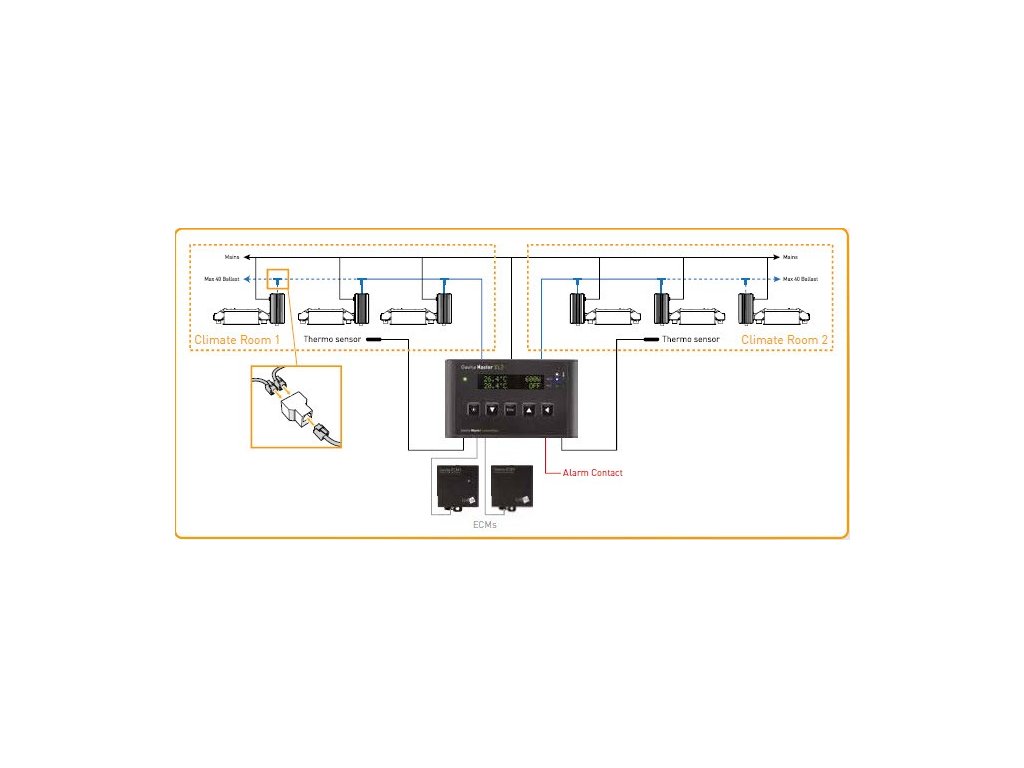

The Gavita Master EL1 control unit is designed for simultaneous switching, regulation and temperature control of one to forty Gavita e-series luminaires. All you have to do is connect the control unit to the luminaire, if there are more, use the enclosed splitters (see diagram), set the control switch on the luminaires to EXT (external control), connect the control unit and individual luminaires to the mains and the installation is complete.

The control unit can switch individual luminaires according to the built-in clock, set and indicate their light output (in percent or absolute output in Watts) and even simulate sunrise and sunset to gradually adapt to the climate in the growing area. This control unit replaces expensive timers and contactors and further eliminates current surges when switching on luminaires.

The most important advantages of this control unit are the functions of automatic reduction of output power and emergency shutdown. An increase in temperature above a certain limit can permanently damage your plants. If the temperature sensor detects a temperature rise above the set value, the control unit automatically dims the luminaire's power to prevent further temperature rise. The display and warning LEDs indicate that this condition has occurred and also indicate if this occurred earlier during your absence. If for any reason the previous measure fails and the temperature rises to unacceptable values despite automatic control, the system will perform an emergency shutdown of all connected equipment.


Features and benefits

• No terminal blocks.

• No electric shocks.

• Simple and safe installation, the control unit is a low voltage device.

• Short circuit protection.

• Double thermal protection (automatic control and emergency shutdown).

• For controlling up to forty ballasts.

• Designed for DigiStar and Pro e-series ballasts or entire luminaires, including plasma luminaires.

• Simulated sunrise and sunset with adjustable duration from 0 to 30 minutes.

• Indicates light output as a percentage of maximum light output or in Watts.

• Set the time format between twelve and twenty-four hours and temperature units in ° C or ° F

• Calibrated temperature sensor.

• Meets certification.


Specifications

• Twenty-four hour time format: Yes

• Adjustable light output level: 50 to 115%

• For ballasts with power: 400/600/750/1000 W

• Light output indication: percentage or absolute power in Watts

• Automatic dimming when the set temperature is reached: Yes

• Emergency stop when the set temperature is reached: Yes

• Setting the length of the simulated sunrise and sunset: Yes

• Outputs: 1 (main)

• Maximum number of ballasts per output: 40

• Total maximum number of ballasts: 40

• Temperature sensors: 1 (main)

• Alarm NO / NC output terminals: -

• External Switch Modules (ECM): -

• Warranty: 3 years

• EAN code: 8718403051735 (EU) | 8718403051759 (UK) 8718403051773 (US) | 8718403051797 (AU)

Additional parameters

Category: Control units
Weight: 0.2 kg
