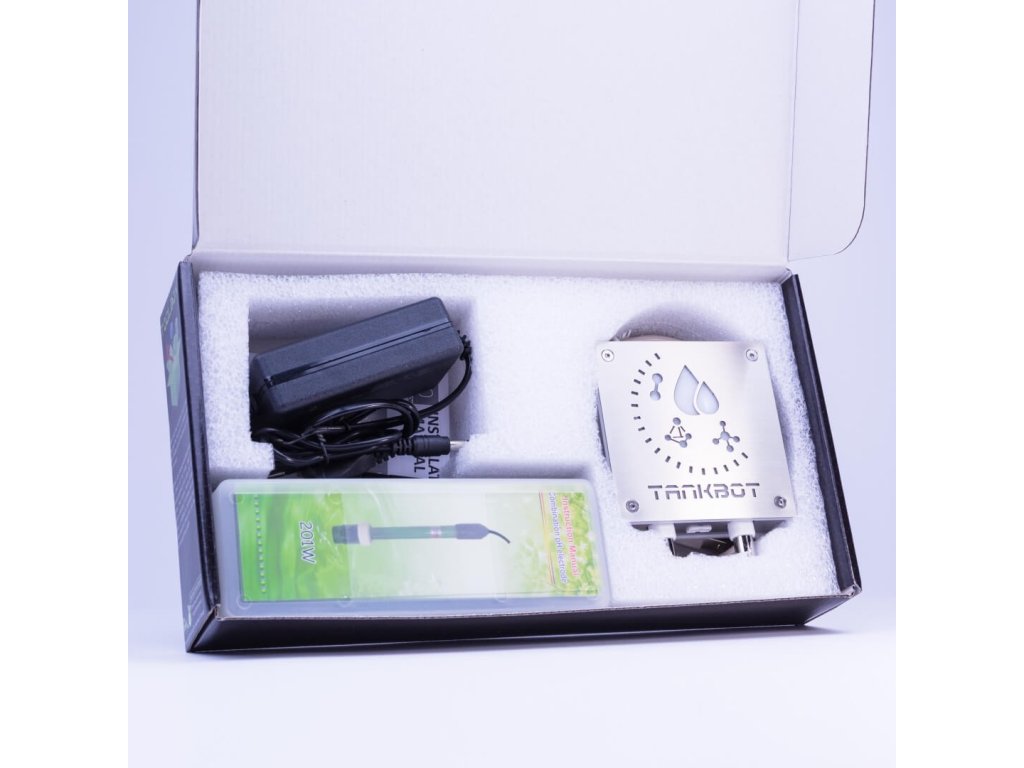

GroLab TankBot

The control unit is the most versatile and accurate module from the GroLab series. The device has four adjustable 12V connectors for controlling water, air or peristaltic pumps and solenoid valves. Connectors for relays and power contactors enable connection and automatic control of irrigation, lighting or ventilation.

TankBot allows you to connect:
USB 2.1 B
RP-SMA female
Input: 12V / 1A; 24V / 2A
Power output: 12V / 1A; 24V / 2A (2.5mm 4-Pin Male)
4x 12V Actuators (2.5 mm 4-Pin male)
4x Switching Sensor (2.5 mm 4-Pin Male)
Temperature sensor (2.5 mm 4-Pin male)
pH BNC connector
EC BNC connector

Specifications:
Voltage: 12V / 2A adapter
Socket cable: 1 m
USB cable: 2 m
Communication frequency: 2.4 GHz
Dimensions: 91x108.9x28.7 mm

PH probe specification for TankBot
Dimensions: 140x12 mm
Cable: 2 m
Temperature range for pH measurement: 0 ° to + 80 ° C
PH measuring range: 0 - 14 pH
PH measurement resolution: 0.01 pH
PH measurement accuracy: ± 0.01 pH
Reaction time: <1 minute

Temperature probe specifications for TankBot
Dimensions: 50x10 mm
Cable length: 2 m
Temperature measuring range: -40 ° to + 110 ° C
Temperature measurement accuracy: ± 0.5o C
