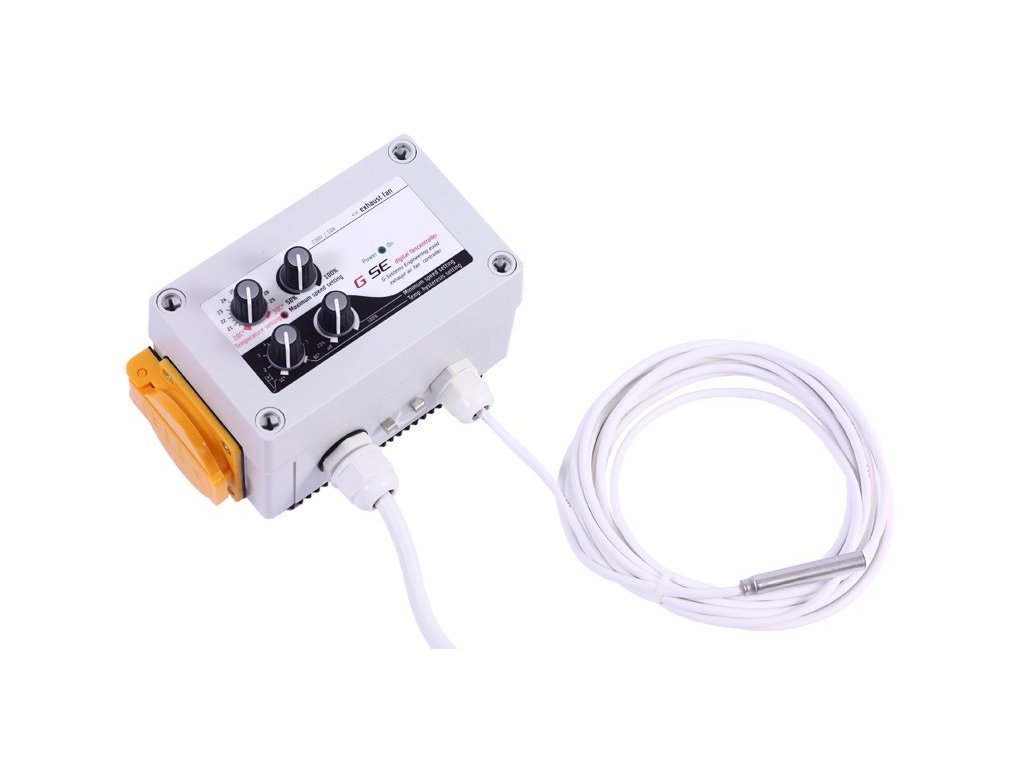

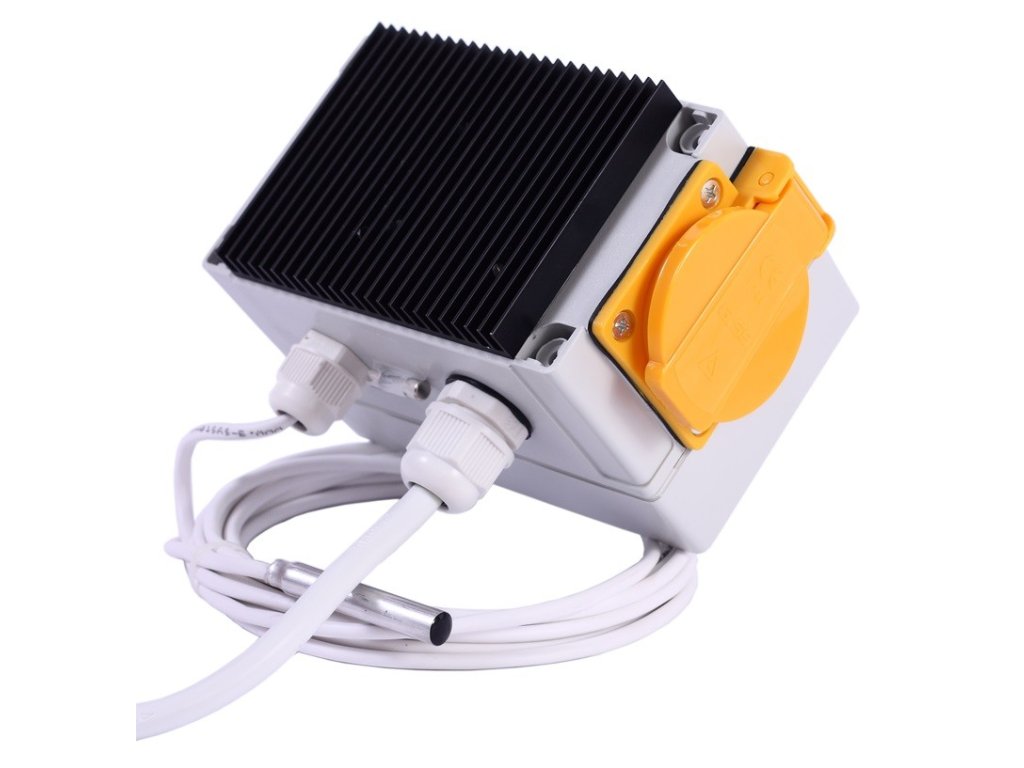

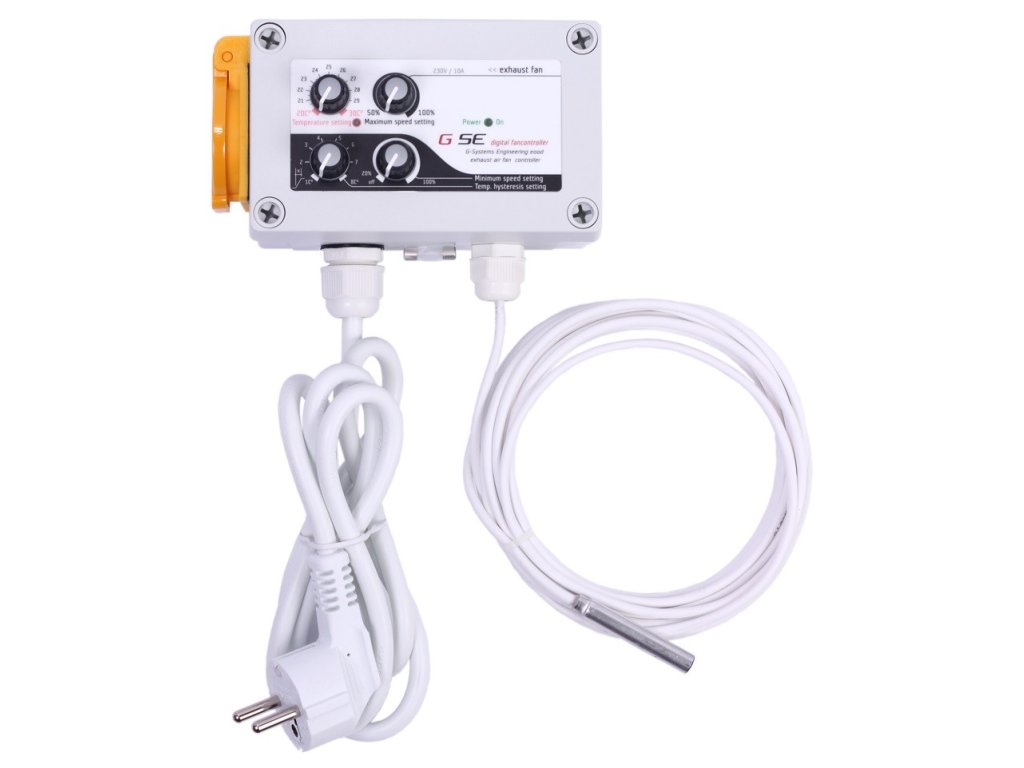

GSE Digital controller for temperature, min & max fan speed and 2x5A hysteresis

It is used to maintain a stable climate in growing rooms or operations with intensive ventilation. Allows temperature and hysteresis control for ventilated rooms with one or more fans. It maintains a constant temperature and balances smooth running between the highest and lowest set speed. Hysteresis is defined by the temperature range, it is the spectrum between the setting of the min.-max temperature, ensures a smooth onset of power. It is easy to control, you can set the temperature, mini-maximum speed and hysteresis with just four controls. The controller is a high-quality, complete product ready for immediate use, thanks to the speed control it keeps the fan as quiet as possible.

Sizes and technical data's:

Case: WxHxD = 130x80x70mm

Controller: WxHxD = 160x100x90mm

Designed for: 5A 1100W

Volts: 230V / 50HZ

Digital sensor 5V Measures temperatures from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)

0.5 ° C accuracy from -10 ° C to + 85 ° C

Protection class: IP54

Settings range:

Temperature: 20C ° to 30C °

Minimum speed: off, 20% to -100%

Maximum speed: 100% to -50%

Negative pressure: 100% to -50%
