Fan GENT ECco 100mm (280m3 / h), EC motor and regulation

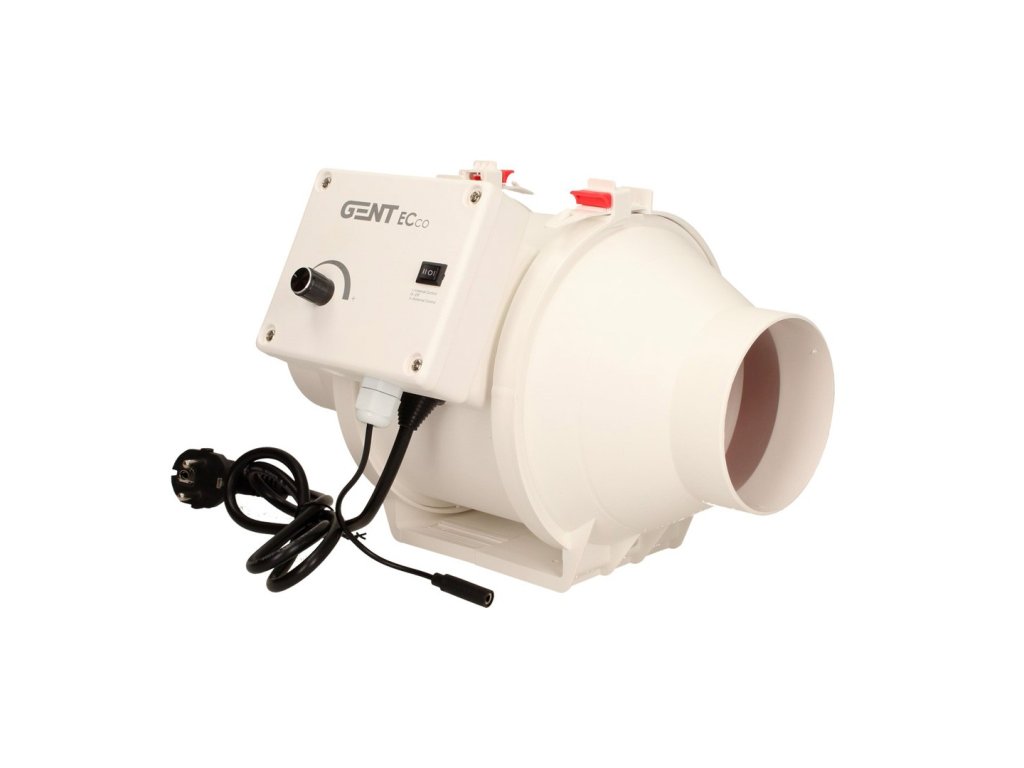

Fan with EC motor GENT ECco TT 100mm (280m3 / h) for pipes with a diameter of 100 mm.
The GENT ECco TT100 duct fan with a maximum air flow of 280 m3 / h has a reliable EC motor with stepless speed control. The fan is compatible with all EC controllers in our offer. Built-in power cable (1m) + JACK (15cm) for connection to the controller.
Warranty:
⬤ continuous power regulation 10-100%
⬤ lower energy consumption
⬤ higher efficiency
⬤ longer service life
⬤ slight vibrations
⬤ low noise
⬤ continuous operation
Parameters:
⬤ Power consumption: 25-30 W
⬤ Max. air flow: 188-280 m3 / h
⬤ Input voltage / frequency: 115 ~ 230VAC / 50 ~ 60Hz
⬤ Current: 0.12-0.13 A
⬤ Air pressure: 93-205 Pa
⬤ Noise: 26-31 dB
⬤ Speed: 1650-2450 rpm
⬤ Weight: 1.7 kg
The fan is not compatible with the Prima Klima controller Digital temperature controller, max / min speed.
Additional parameters
| Category: | Fan GENT |
|---|---|
| Warranty: | 2 years |
| EAN: | 8594200870096 |
