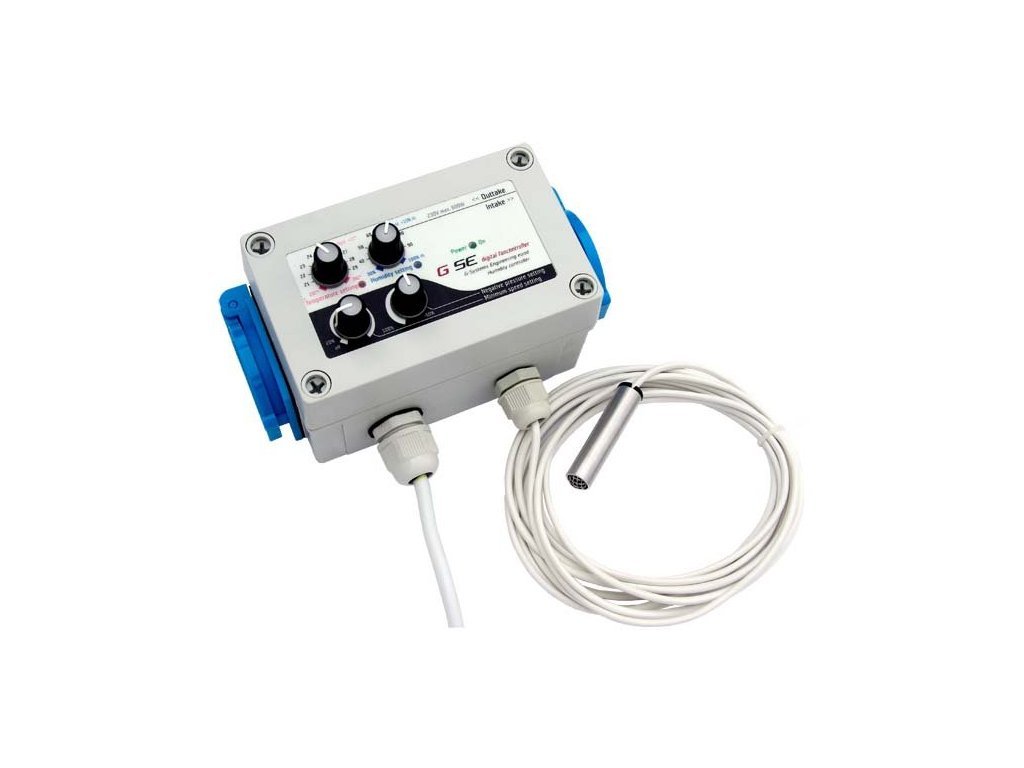

GSE Digital temperature, humidity, vacuum and min.speed fan controller 2x1A

The GSE speed controller allows you to control fan speed, temperature, humidity or vacuum. Can be used for 1 or 2 fans.

The item has been sold out…
Availability OUT OF STOCK
Code: 9108
€149,99
GSE Digital temperature, humidity, vacuum and min.speed fan controller 2x1A

   GSE's multifunctional regulator is used to maintain a stable climate in growing rooms or intensive venting plants. It is used in combination with the extract and supply fan or with only one exhaust fan. The GSE Temperature, Humidity, Vacuum and Minimum Speed Controller keeps the room temperature and humidity constant and prevents the speed from falling below the set minimum. It is easy to operate, since only four knobs can be used to set the temperature, humidity and minimum speed.

This GSE speed controller is a complete product ready for immediate connection. The high degree of protection IP54 guarantees safe operation even in damp rooms. The probe cable is 4 meters long, the sensor measures both humidity and temperature.

Device dimensions 160x100x90mm. Designed for 2x200W / TRIAK 2x16A.



Sizes and technical data:

Case: WxHxD = 130x80x70mm
Controller: WxHxD = 160x100x90mm
Designed for: 5A / 2x200W / TRIAC 2x16A
Volts: 230V / 50Hz
Digital sensor 5V
Measures temperatures from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)            0.5 ° C accuracy from -10 ° C to + 85 ° C
humidity accuracy ± 4.5% rh
Protection class IP54



Settings range:

Temperature: 20 ° C - 30 ° C

Humidity: 30% - 100%

Minimum speed: 20% - 100%

Negative pressure: 100% - 50%
