GSE Digital temperature controller and min. fan speed

Product detailed description

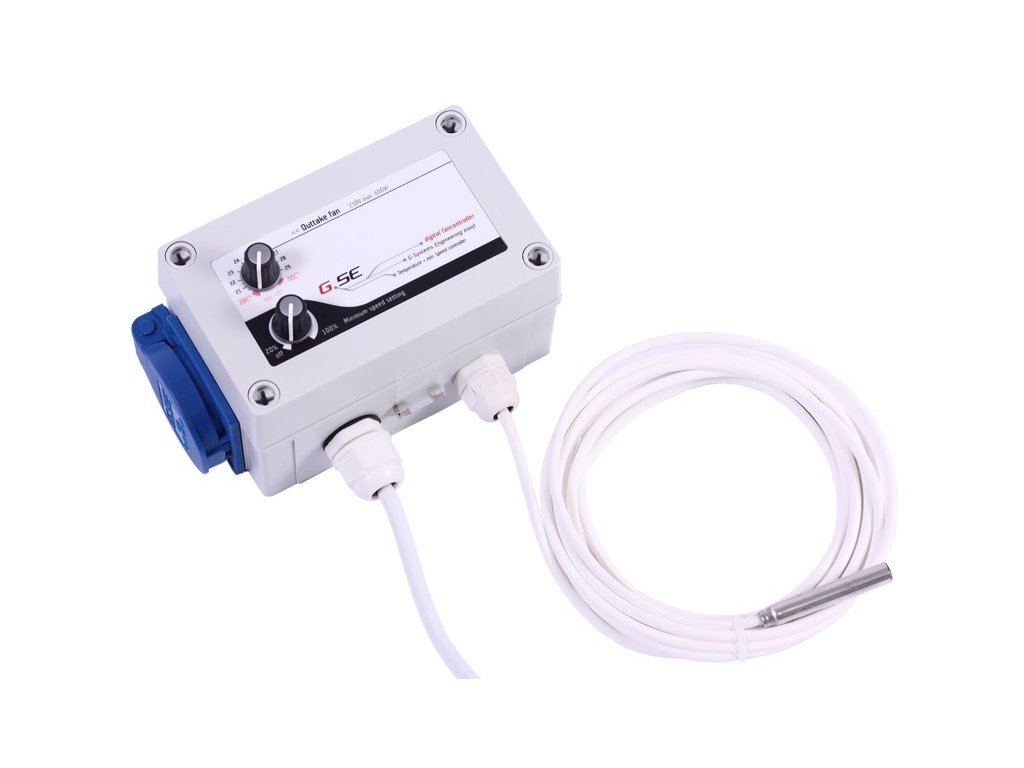

The ZEWLING 1 GSE Speed Controller allows you to continuously control fan speed and room temperature. This device is used to control one exhaust fan.

The regulator, in combination with the exhaust fan, serves to create a stable climate in all growing areas or wherever there is a need for intensive ventilation. The fan speed can be set between 20-100% of power, which can significantly reduce noise. The temperature can be continuously controlled between 20-30 ° C. If the required temperature is exceeded, the exhaust fan is switched on, which operates until it drops back to the set value.

The GSE temperature and minimum speed controller is easy to operate, with only two knobs to adjust. The advantage is also the degree of protection IP54.

The controller is equipped with a probe with a temperature sensor and is ready for use.

Designed for 1A / 200W / TRIAK 1x16A. Dimensions 160x100x90mm

Technical data:

Case: WxHxD = 130x80x70mm

Controller: WxHxD = 160x100x90mm

Designed for: 1A / 200W / TRIAC 1x16A

Voltage: 230V / 50HZ

5V digital sensor measures temperature from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)

0.5 ° C deviation from –10 ° C to + 85 ° C

Protection class: IP54

Setting range:

Temperature: 20 ° C to -30 ° C

Minimum speed: off, 20% to -100%
