GSE Step Transformer 2A - Humidity / Temperature / Hysteresis for 1 Fan

Code: 9999
The item has been sold out…

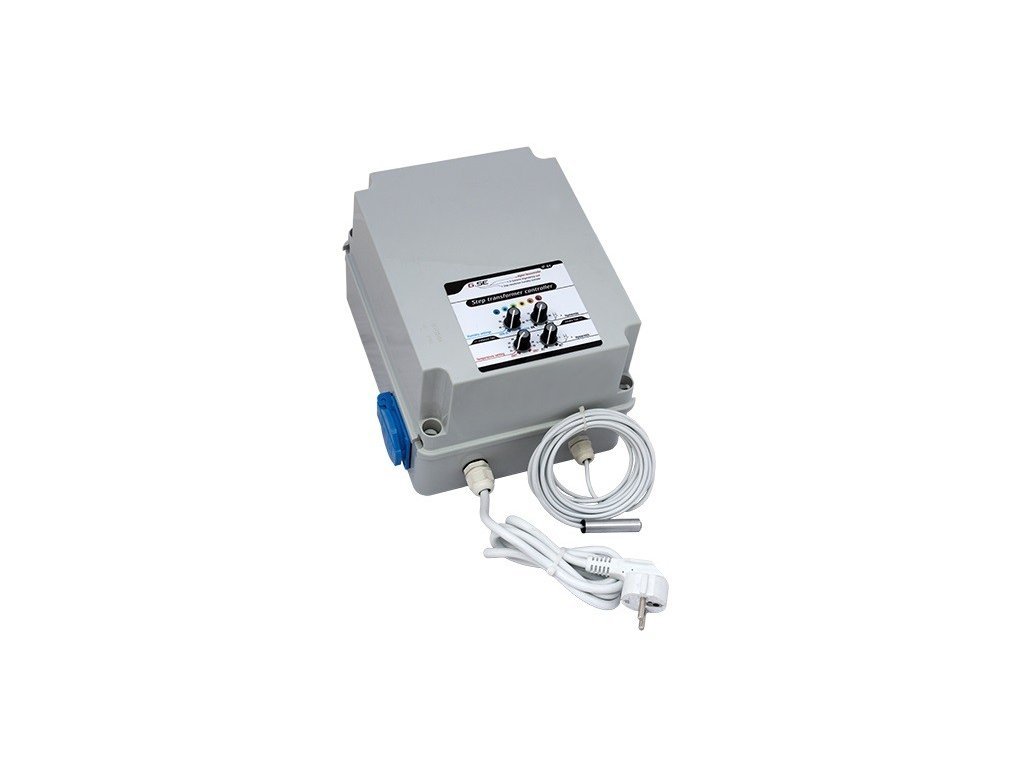

Step Controller for Humidity and Temperature Control GSE Step Humidity and Temperature Transformer 8A. For two fans.

Detailed information

Product detailed description

GSE Humidity and Temperature Step Transformer is designed to control the speed of the inlet and exhaust fans according to the current temperature and humidity. During control, it can minimize excessive noise at start-up or at lower speeds.

The controller controls the speed at 6 levels. You can easily adjust the temperature (20-30 ° C) and humidity (30-100%), including their hysteresis (2-8 ° C / 6-30%) using four buttons. The exhaust fan always runs one step behind the exhaust, thus preventing odor leakage.

The temperature sensor measures the temperature in the range of -55 to + 125 ° C to within 0.5 ° in the range of -10 ° to + 80 ° C. The sensor measures humidity to 4.5% relative humidity. Another advantage is the durable waterproof housing with IP54 protection. In addition to the mains connection cable, the complete device also includes a 4-meter cable temperature and humidity sensor.


Sizes and technical data:

Case: WxHxD = 200x250x180mm
Controller: WxHxD = 265x300x205mm
Designed for: 2.5A or 8A
Volts prim: 230V / 50Hz
Volts sec. 80V, 110V, 140V, 200V, 200V, 230V automatic 50HZ
Digital sensor 5V
Measures temperatures from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)         0.5 ° C accuracy from -10 ° C to + 85 ° C
humidity accuracy ± 4.5% rh
Protection class IP54


Settings range:

Temperature: 20 ° C - 30 ° C

Temperature hysteresis: 2-8 ° C

Humidity: 30% - 100%

Humidity hysteresis: 6% -30%
