GSE Step transformer 8A - temperature / hysteresis for 1 fan

Code: 9120
The item has been sold out…

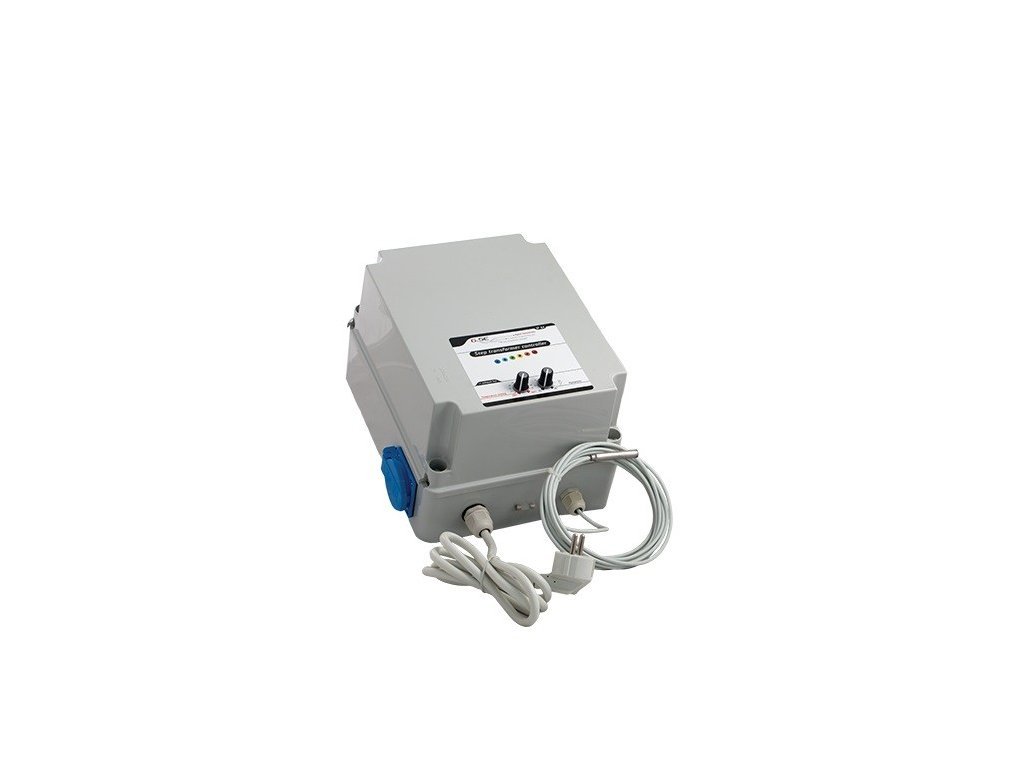

GSE Step transformer 8A  for 1 fan.

Detailed information

Product detailed description

The step transformer controller have the special characteristic that the ventilators make no noise "hum" in the lower rotation. The step transformer control the fan speed from self 6-step up/down according the temperature. Temperature as Hysteresis (sensitivity) can be set on two knob's.

The controller comes as a finished part and is ready to use. This reliable fan controller comes complete with a sealed water resistant cover, plugs with flap-lids and a low voltage sensor making it perfect for humid rooms. The sensor comes with a 4meter long cable and can be extended up to 50meters.

Sizes and technical data's:

Case: WxHxD = 200x250x180mm
Controller: WxHxD = 265x300x205mm
Designed for: 8A / 1800W
Volts: 230V / 50HZ
Digital sensor 5V
Measures temperatures from –55°C to +125°C (–67°F to +257°F)        0.5°C accuracy from –10°C to +85°C
Protection class: IP54


Settings range:

Temperature: 20C° - 30C°

Temperature hysteresis: 2-8C°
