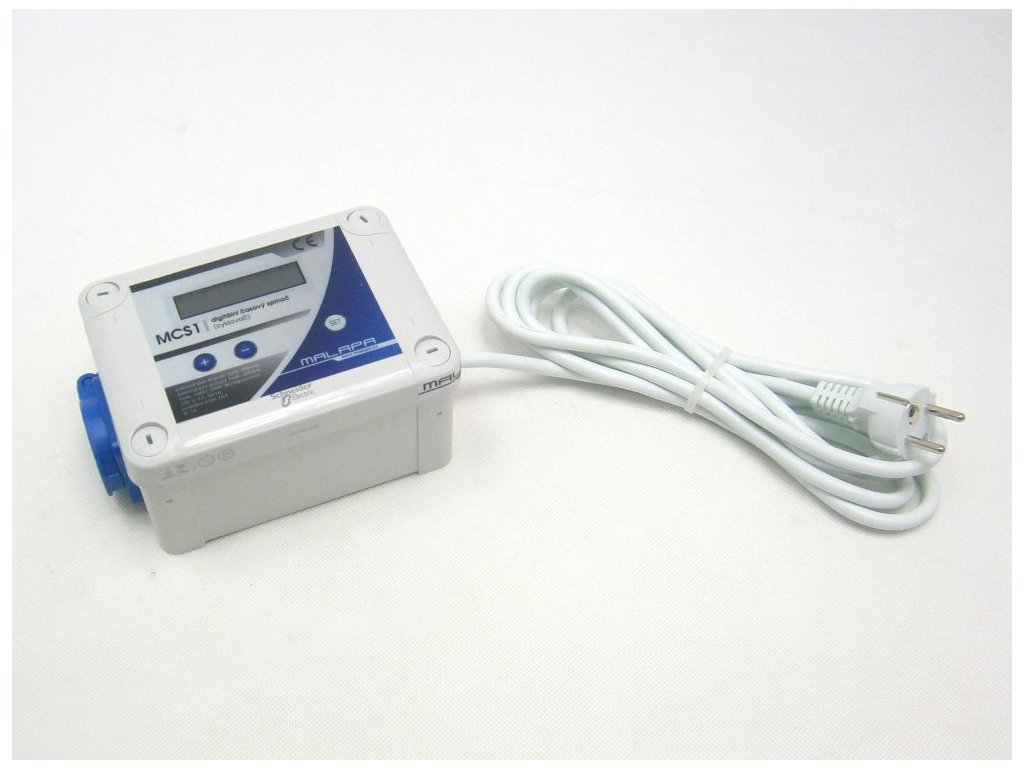

Malapa MCS1 - digital timer (cycler)

Digital switch for regular switching of appliances. A very precise time measurement allows you to switch the appliance at exact intervals. Switches inductive and resistive loads. Differently adjustable switch-on and off times. The set time can be very short eg for just one second in 24 hours. The start / start of the program by switching on or by the space can be changed in the menu. Adjustable minimum time period of 1 second, maximum time period of 24 hours. MCS1 is designed for a load up to 3000W.
A clear 2-line LCD display informs you about the time and status of the output (sockets). Backup settings. Immediate installation, for electrical connection. The cord is equipped with a 3 meter long fork and a drawer for connecting the switched appliance. The whole device is protected by a fuse. You can mount the device with the wall brackets (included). Long-term and flawless operation even under extreme conditions, over design.

Using the MCS1 Digital Timer:
timer for automatic irrigation, digital timer for light bulbs / led, automatic switching of lights / lighting / advertising, digital timer for sludge / immersion / pool / water pumps, digital timer for drill pump, digital timer for domestic waterworks , timer for fan / fan, digital timer for automatic irrigation / garden / lawn / greenhouse irrigation, digital timer for automation, fuel metering eg boiler pellets, digital timer for sewage / sewage treatment plant, digital time switch for appliances, digital timer for appliances, digital timer for warning lights, digital timer for warning beacons ...

The main function of the MCS1 Timer:

• maximum load of connected appliance 3000W
• LCD display, 2 lines, 3 control buttons
• adjustable switching time (from 1 second to 24 hours)
• adjustable opening time (from 1 second to 24 hours)
• adjustable minimum time period of 1 second
• adjustable maximum time period of 24 hours
• timer option starting with switching on or off
• switching of inductive and resistive appliances
• a 3 m long plug with a plug
• socket (outlet) on the switch body
• secured by its own policy
• installation of the device on the surface, fastening material in the package
• simple and quick assembly

Advantages:
no battery, the saved setting remembers even after interrupting the el. energy, fast change in settings and accurate time measurement. The appliance, which is not running, consumes no el. energy ...

MCS1 Timer Technical Specifications:

• power supply - 230V AC 50Hz
• maximum load - resistive 3000W (13A)
• maximum load - inductive 460W (2A)
• LCD display - 2 lines
• control button - 3x (+ - SET)
• output - start by switching on / off
• switching time - 1 second to 24 hours
• Expansion time - 1 second to 24 hours
• adjustable time - minimum 1 second, maximum 24 hours
• Accuracy + -2 seconds / 24 hours
• data backup - 35 years
• protection - thermal
• menu - Czech (change on request)
• supply cord with fork - 3 meters
• secured by a fuse
• mounting - wall / surface (holders)
• total weight - 1135 grams
• size - length 170, width 120, height 85mm
• operating temperature -20 ° to 70 ° C
• working humidity - 0% to 90% RH (non-condensing)
• storage temperature - 0 ° to 45 ° C
• protection - IP44
• box - ABS
