Apogee Instruments SQ-520 -measuring probe PAR/PPFD

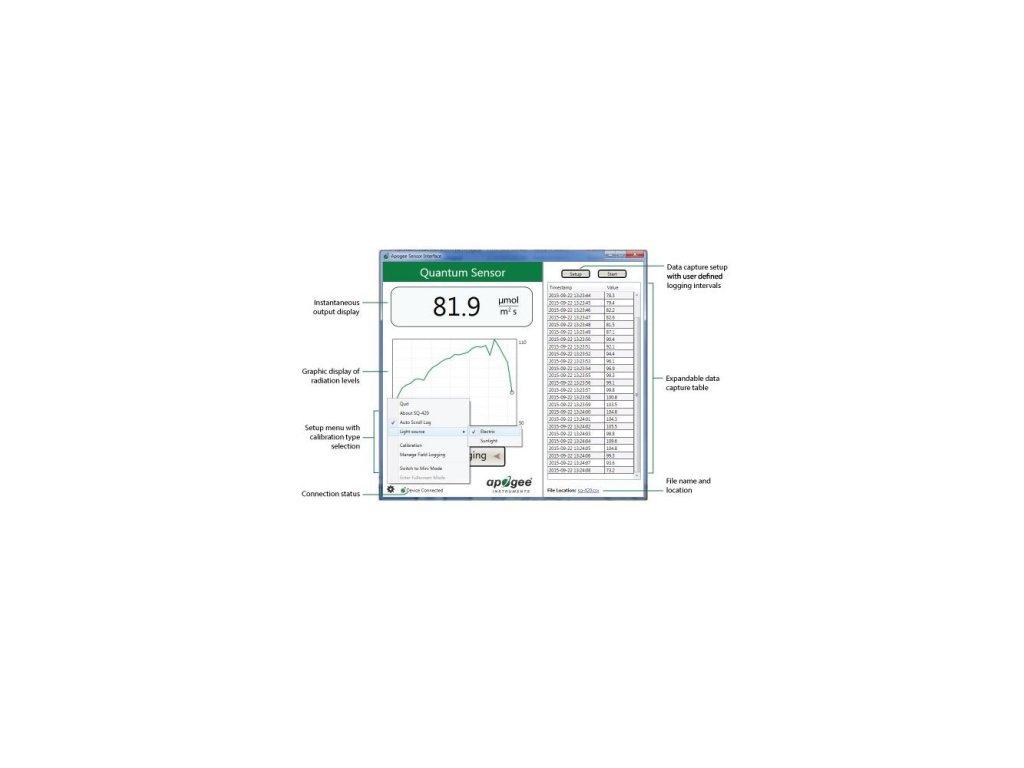

The SQ-520 can be connected directly to a computer with a USB cable for real-time spot or graph and protocol PPFD (photosynthetic photon flux density = amount of PAR that a plant receives from lighting) using the included software. It can also serve as a stand-alone protocol unit by simply connecting to a standard 5 V DC USB adapter. The internal memory inside the probe has a capacity of 10,000 user-specified periodic measurements with the option of saving in CSV format.

Use

Measurement of incoming PPFD. Unlike conventional LUX meters, LED lighting can be used for measuring, in which PAR and PPFD play a crucial role!

Specifications

resolution: 0.1 µmol × m ^ (- 2) × s ^ (- 1)
calibration factor: specific to each probe; stored in the firmware
calibration deviation: ± 5%
measurement repeatability: <1% up to 4000 µmol × m ^ (- 2) × s ^ (- 1)
long-term degradation of measurement accuracy: <2% per year
nonlinearity: <1% (up to 4000 µmol × m ^ (- 2) × s ^ (- 1))
time response: the software updates every second
field of view: 180 °
light spectrum range: 389 - 692 nm ± 5 nm (wavelengths where the response is greater than 50% of the maximum)
spectral selectivity: <10% from 412 to 682 nm ± 5 nm
directional (cosine) response: ± 5% at 75 ° zenith angle
azimuth error: <0.5%
tilt error: <0.5%
temperature response: -0.11 ± 0.03% C ^ (- 1)
uncertainty of measurement in daily sum: <5%
probe: improved blue silicon photodiode
cover: anodized aluminum body with acrylic diffuser
fully dust and water resistant (IP68)
operating environment: -40 - 70 ° C; 0-100% RH; individual sensors can be immersed to a depth of up to 30 meters
size: O 24 mm, 37 mm length
USB cable: 4.6 m
probe weight: 90 g
current consumption: 61 mA
warranty: 4 years against defects in material and workmanship
made in the USA
