GSE controller for EC fans

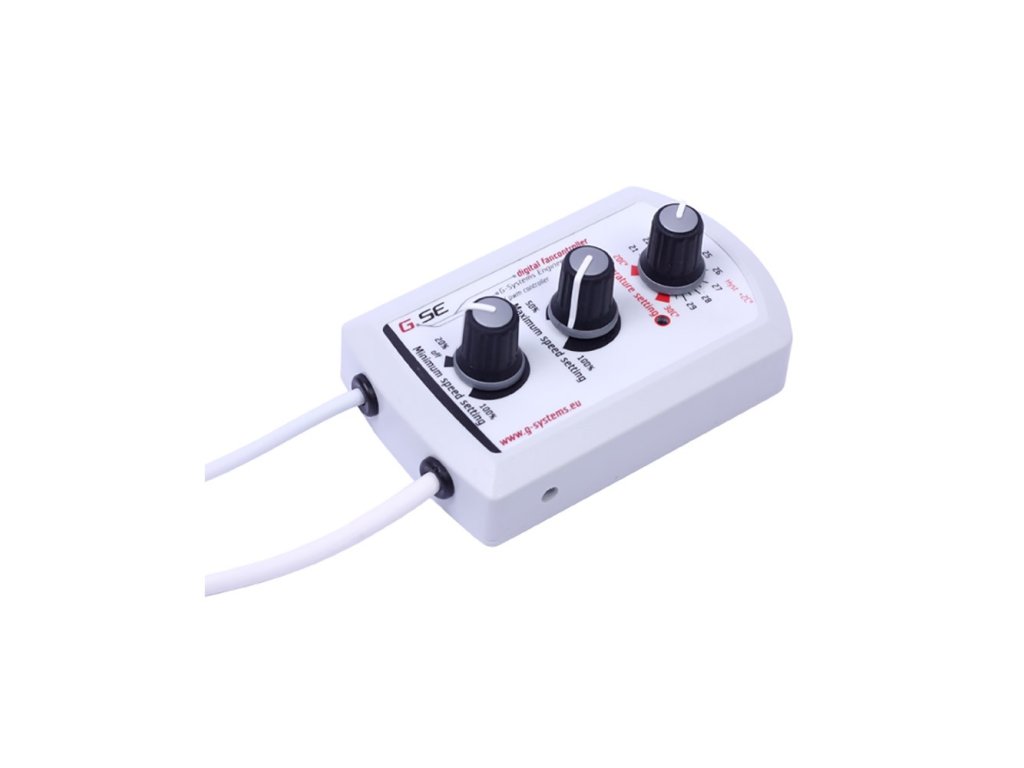

Simple controller for EC fans from GSE. Speed control and regulation according to various parameters, easy adjustment by means of three rotary knobs.

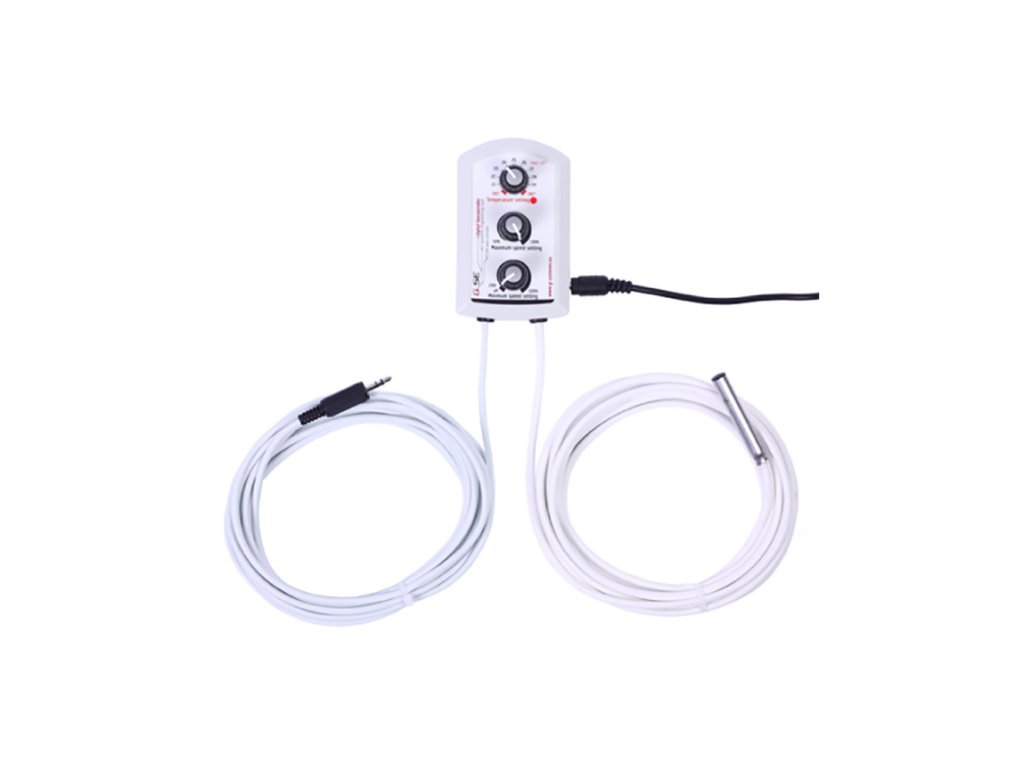

The EC fan control unit comes with a 4 m long cable, including a 3.5 mm 4-pole stereo jack for the fan and a 4 m long temperature sensor. It is supplied as a final product together with an energy source. The control signal is 0-10V. If the EC fan supports the PWM signal, the controller is able to run without power.

Settings and range:
Temperature: 20C ° to 30C °
Minimum speed setting: off, 20% to -100%
Maximum speed setting: 100% to -50%

Technical data:
Size: 90mm x 58mm x 40mm
Weight: 307g
Voltage: 12VDC
Consumption: 10mA
Protection class: IP 20

Package contains:
1x EC controller with temperature probe
1x power supply
