GSE Step transformer 2A - humidity / temperature / hysteresis for 2 fans

GSE Humidity and Temperature Step Transformer is designed to control the speeds of the supply and exhaust fans according to the current temperature and humidity. When regulating, it manages to minimize excessive noise at start-up or at lower speeds.

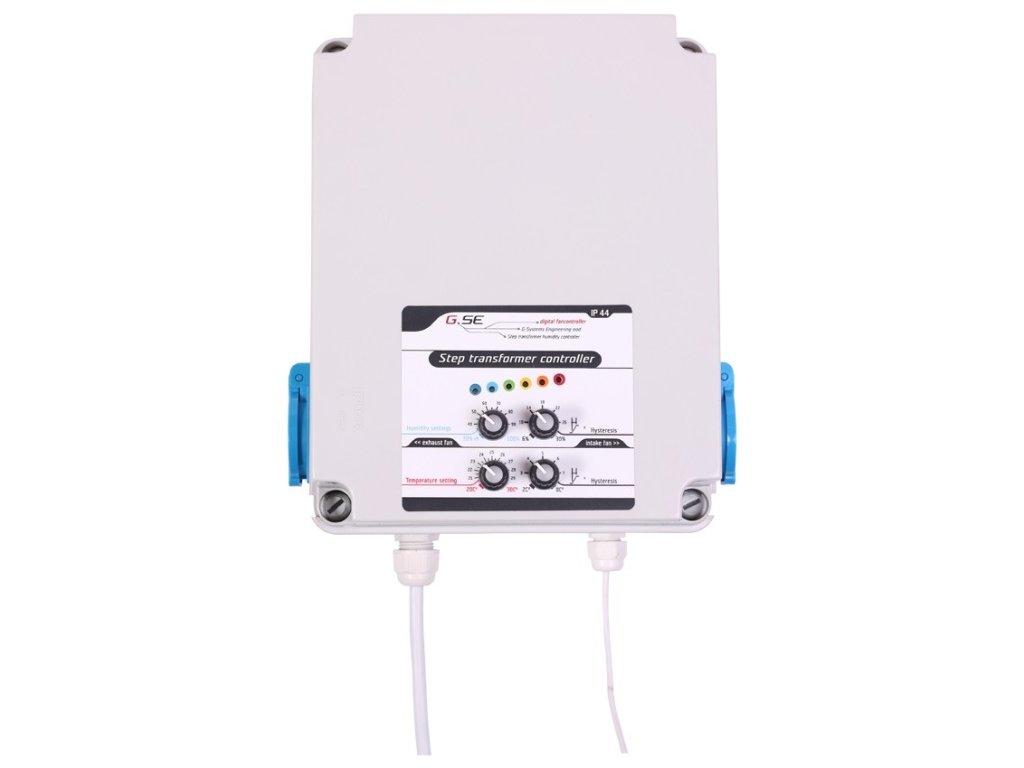

The controller controls the speed on 6 levels. You can easily set the temperature (20-30 ° C) and humidity (30-100%) including their hysteresis (2-8 ° C / 6-30%) with four knobs. The inlet fan always runs one step behind the exhaust fan, thus preventing odors from escaping.

The temperature sensor measures the temperature in the range -55 to + 125 ° C with an accuracy of 0.5 ° in the range -10 ° to + 80 ° C. The sensor measures humidity with an accuracy of 4.5% relative humidity.

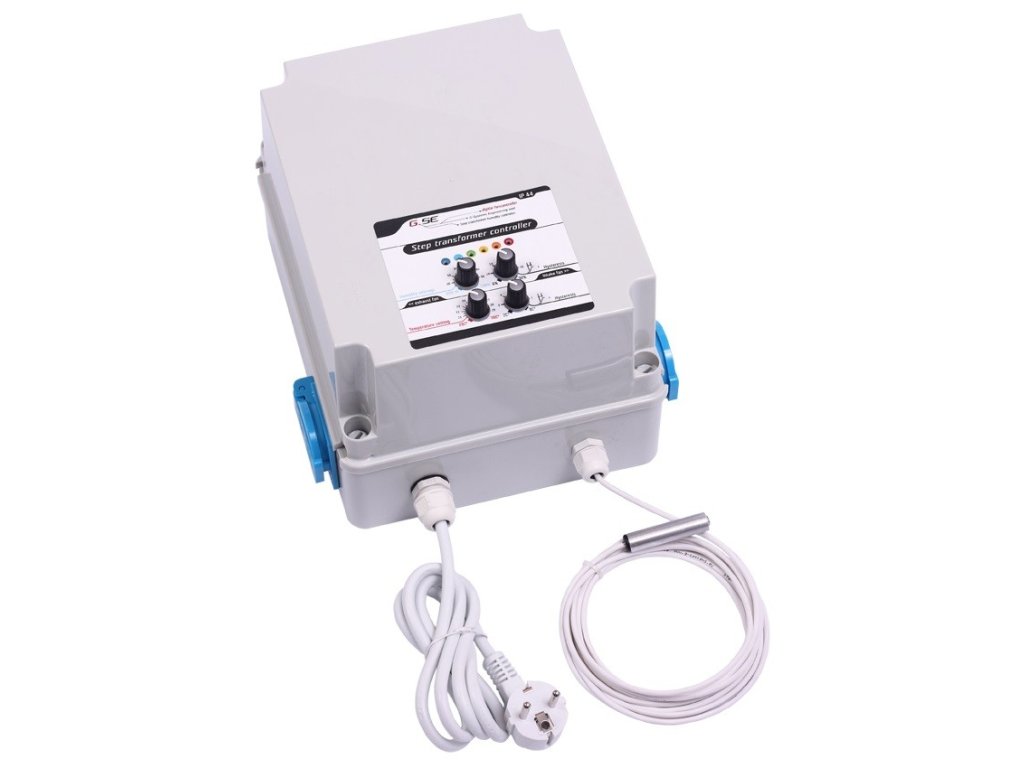

Another advantage is the durable waterproof cover with the degree of protection IP54. In addition to the cable with the mains connection, the complete device also contains a temperature and humidity sensor on a four-meter cable.

Sizes and technical data's:

Case: WxHxD = 200x250x180mm

Controller: WxHxD = 265x300x205mm

Designed for: 2.5A (for 2fans)

Volts prim: 230V / 50HZ

Volts sec. 80V, 110V, 140V, 170V, 200V, 230V automatic-steps 50HZ

Digital sensor 5V Measures temperatures from –55 ° C to + 125 ° C (–67 ° F to + 257 ° F)

0.5 ° C accuracy from -10 ° C to + 85 ° C

humidity accuracy ± 4.5% rh

Protection class IP54

Settings range:

Temperature: 20C ° - 30C °

Temperature hysteresis: 2-8C °

Humidity: 30% - 100%

Humidity hysteresis: 6% -30%
