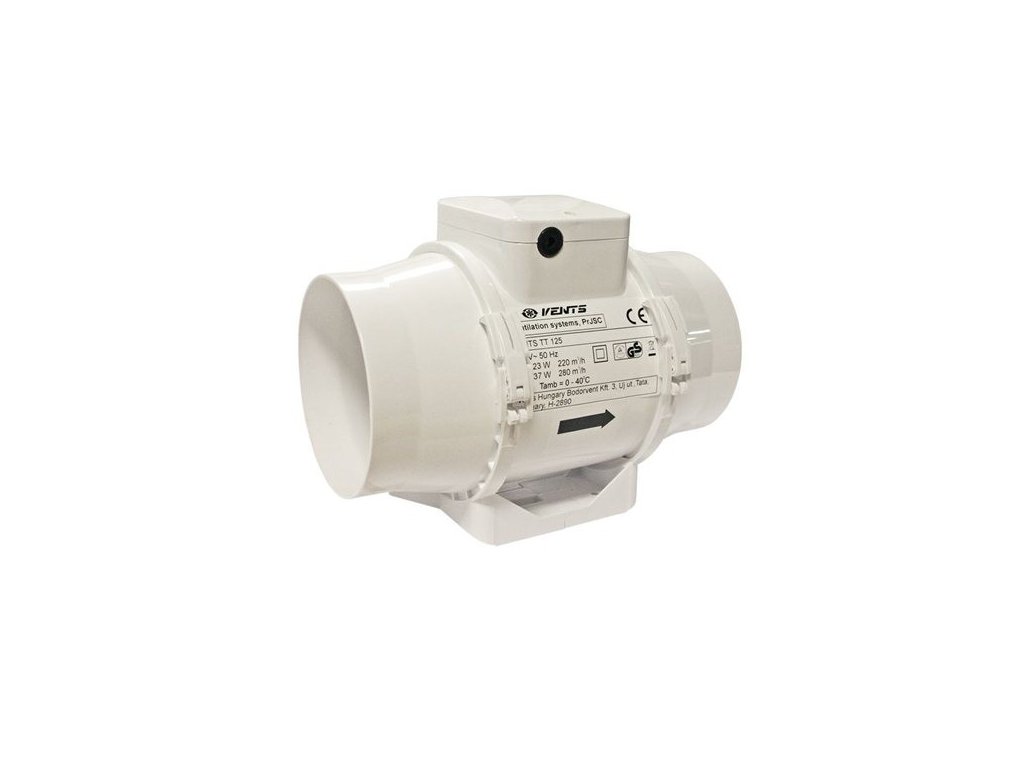

TT 125 U Fan 220 / 280m3 / h

Code: 1484
Stock in Europe

Pipe fan TT 125 U with thermostat, single phase motor and ball bearing. Temperature control of speed.

Detailed information

Product detailed description

The smaller plastic fan TT 125 U has a maximum output of 220 / 280m3 / h and is designed for ventilation ducts with a diameter of 125 millimeters. The main advantage of this fan is an electronic temperature sensor that provides automatic speed control depending on ambient or pipeline air temperature. When the temperature rises 2 degrees above the set temperature, the fan switches to a higher speed. After the temperature drops, it returns.


single phase motor with thermostat and ball bearing lifetime up to 40,000 hours
cover made of highly durable ABS plastic
semi-plastic plastic blades protection against overheating of the engine allows connection at any angle and anywhere in the piping system
maximum air capacity (power) 220 / 280m3 / h l
ow power consumption 23 / 37W 1960/2500 revolutions per minute pressure 160 / 136Pa
sound pressure level 29/36 dbA
Compatible with a 125 mm diameter round pipe
weight 1.4kg
IP X4 protection
max. operating temperature 60 degrees into pipes with a maximum length of 17 m


Additional parameters

Category: TT Fans
Fan flow: up to 500 m3/h
Flange: 125mm
Flow: 220/280m3/h
