Ventilator VKO 100, 105m3/h, D=100, D1=104 mm

Code: 1474
€13,01 €10,75 excl. VAT
Stock in Europe

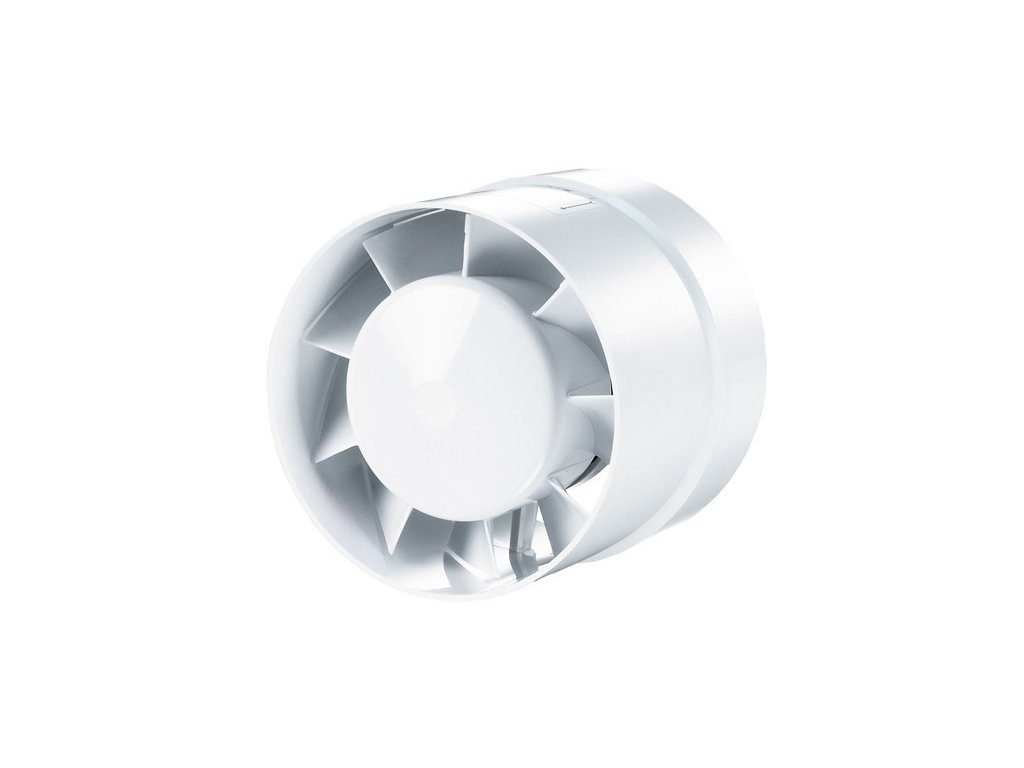

Smallest VKO 100 ABS plastic duct fan. Low consumption, manual control, suitable for very small spaces. Pipe diameter 105mm.

Detailed information

Product detailed description

The VKO 100 plastic fan is designed for very small residential, office, production or work space. The fan casing is made of durable ABS plastic as well as axial blades. Due to its technical parameters and output of 105m3 / h, this tapered fan is suitable for use for shorter ventilation ducts with low pressure loss or for exhausting directly across the wall. The small VKO100 pipe axial fan is compatible with all types of 100mm diameter air ducts. The fan can be used for both inlet and outlet. The absence of ball bearings allows only horizontal engagement. Before installing, pay attention to the enclosed Czech instructions.

consumption (power) 14W voltage 220-240V
output 105m3 / h 2300 rpm
static pressure 37 Pa
sound pressure level 37 dB (A)
weight 0,41 kg m
maximum operating temperature 40 degrees
recommended maximum pipe length of 5m
Protection against overheating
IP X4 protection

Additional parameters

Category: VKO Fans
Fan flow: up to 500 m3/h
Flange: 100mm
Flow: 105m3/h
