Fan Prima Klima PK250-L1 250mm, 1300m3 / h - 1-speed

Code: 9115
Stock in Europe

Prima-Klima Pk250-L1 single-speed fans were designed to maximize cost / benefit optimization.

Detailed information

Product detailed description

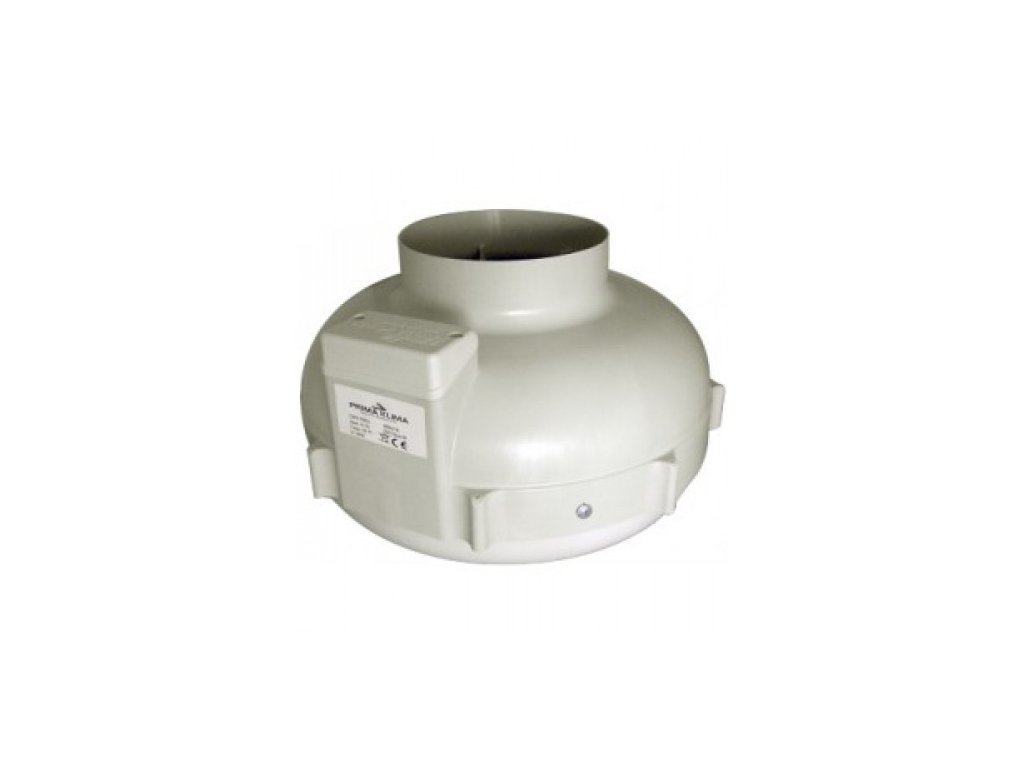

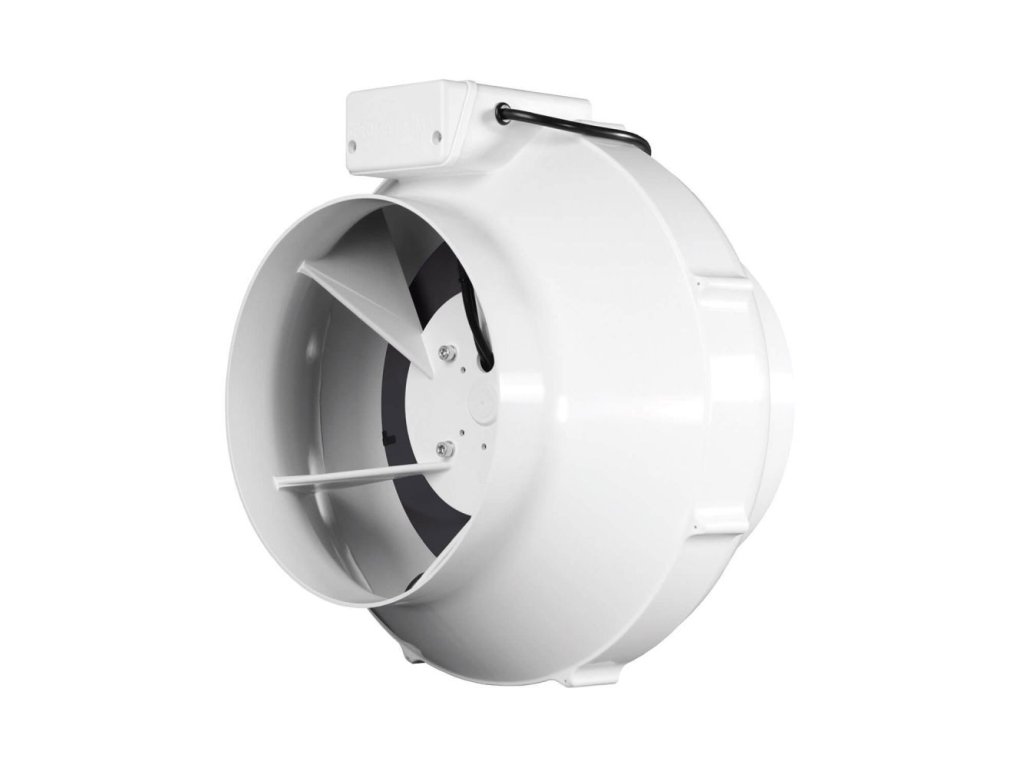

The Prima Klima PK250-L1 is highly efficient inline duct fan equipped with an ebm-papst AC motor with backward curved blades which has been optimally adapted to the housing. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Without cabling!


  ebm-papst AC motor
  Impeller with backward curved blades
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing

Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: 1000 - 1500 m3/h
Flange: 250mm
Input: 230V 50/60Hz 0.93/1,25A
Max Airflow: 1300m³/h
Measurements: 378mm x 276mm (w/h)
Power: 210/285W
Tmax: 42°C
Weight: 4.84Kg (6Kg Gross Weight)
