Fan Prima Klima PK100-TC 100mm, 280m3/h - TEMP CTRL

Code: 8940
Stock in Europe

Fan Prima Klima PK100-TC 100mm, 280m3 / h with temperature regulation. With a flange diameter of 100 mm, the PK100 is the smallest high-performance fan of the Prima Klima brand. Compared to most other fans in this class, the right-hand condenser motor is used for this hundred-liter Prima Klima fan, which has been optimally matched to the housing.

Detailed information

Product detailed description

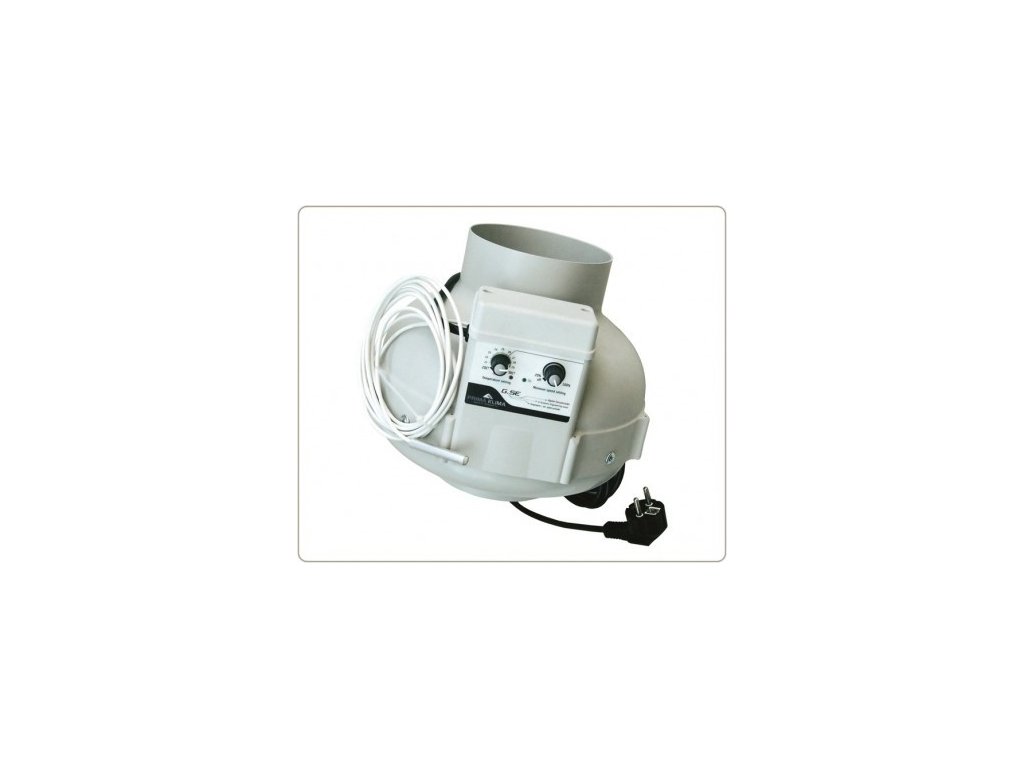

The PK100-TC is smallest of Prima Klima's highly efficient temperature controlled inline duct fans equipped with an MES AC motor. Fan use a real capacitor motor that has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Include cabling.


  MES AC motor

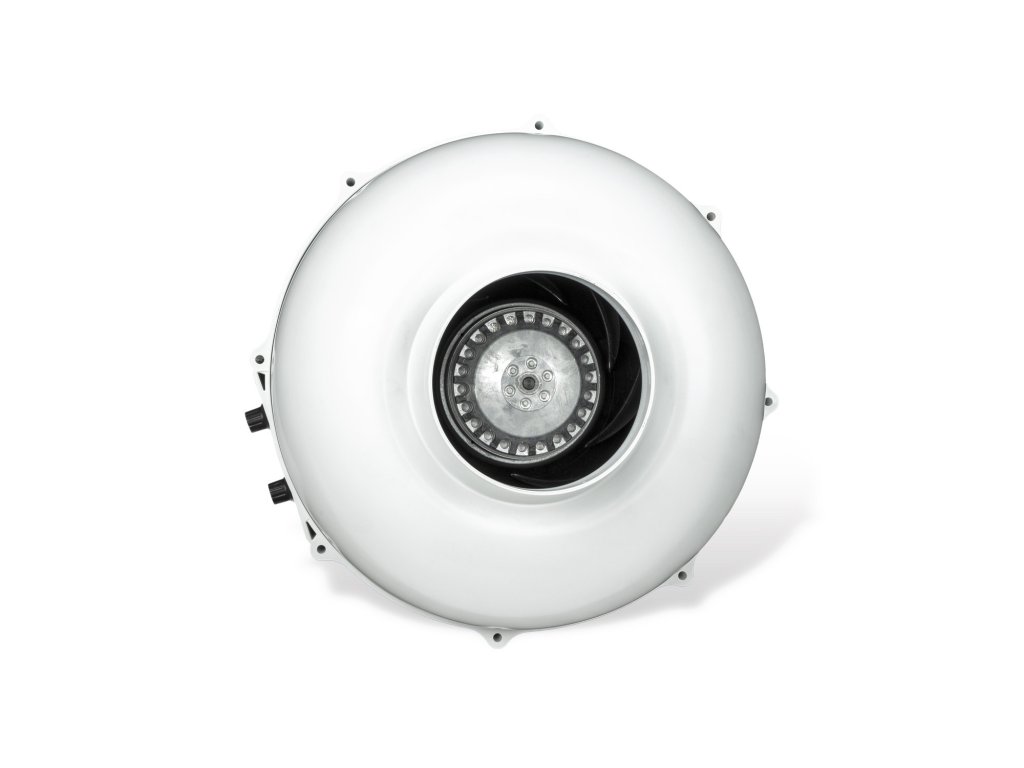

  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Temperature and speed control adjustable
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing


Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: up to 500 m3/h
Flange: 100mm
Input: 230V 50/60Hz 0.18A
Max Airflow: 280m³/h
Measurements: 244mm x 241mm (w/h)
Power: 40W
Tmax: 42°C
Weight: 2.38Kg (3.06Kg Gross Weight)
