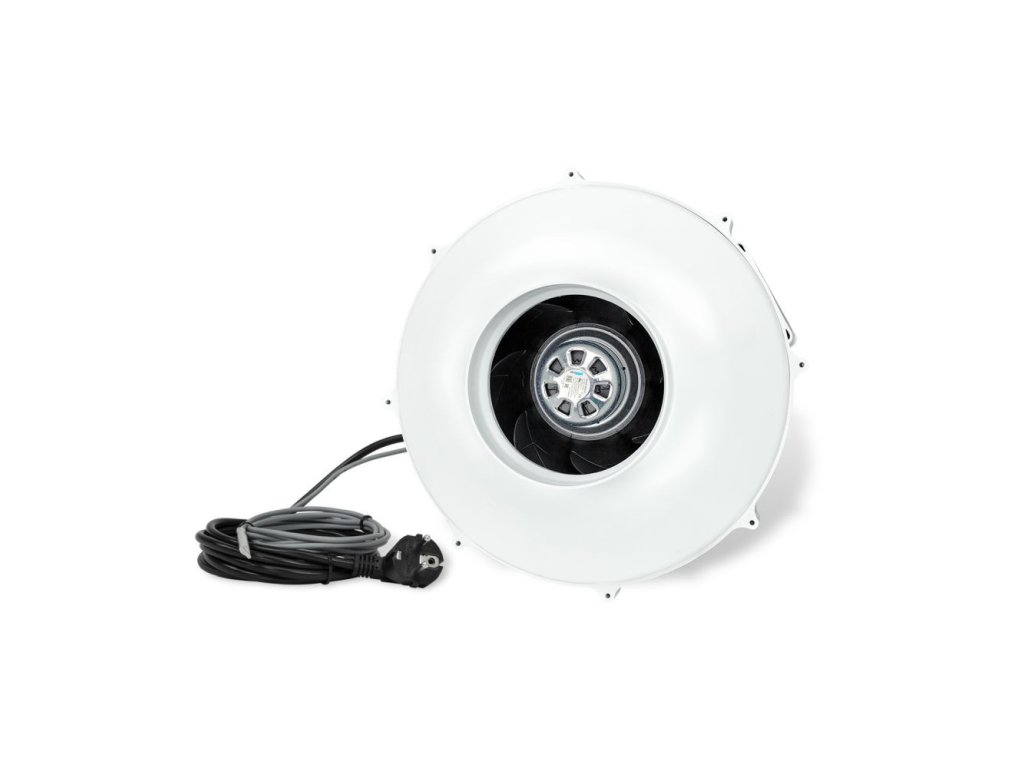

Fan Prima Klima PK150EC-TC 150mm, 1100 m3 / h - temperature control and min. speed, EC motor

Code: 8895
Stock in Europe

Prima Klima PK150EC-TC is a small but highly efficient duct fan equipped with a premium ZIEHL-ABEGG engine with very low power consumption.

Detailed information

Product detailed description

The Prima Klima PK150EC-TC is small highly efficient inline duct fan equipped with an premium ZIEHL-ABEGG motor with very low power consumption. Device is extremely silent and energy efficient thanks to EC-Technology. The entire housing is made of high impact resistant, flame proof polyamide (nylon). The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position.



  premium ZIEHL-ABEGG motor
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Aerodynamically optimized shape
  Impact resistant and durable housing
  Connection and control system in the housing


Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: 1000 - 1500 m3/h
Flange: 150mm
Input: 230V 50/60Hz 0.74A
Max Airflow: 1100m³/h
Measurements: 338mm x 243mm (w/h)
Power: 0-170W
Tmax: 42°C
Weight: 3.30Kg (4.22Kg Gross Weight)
