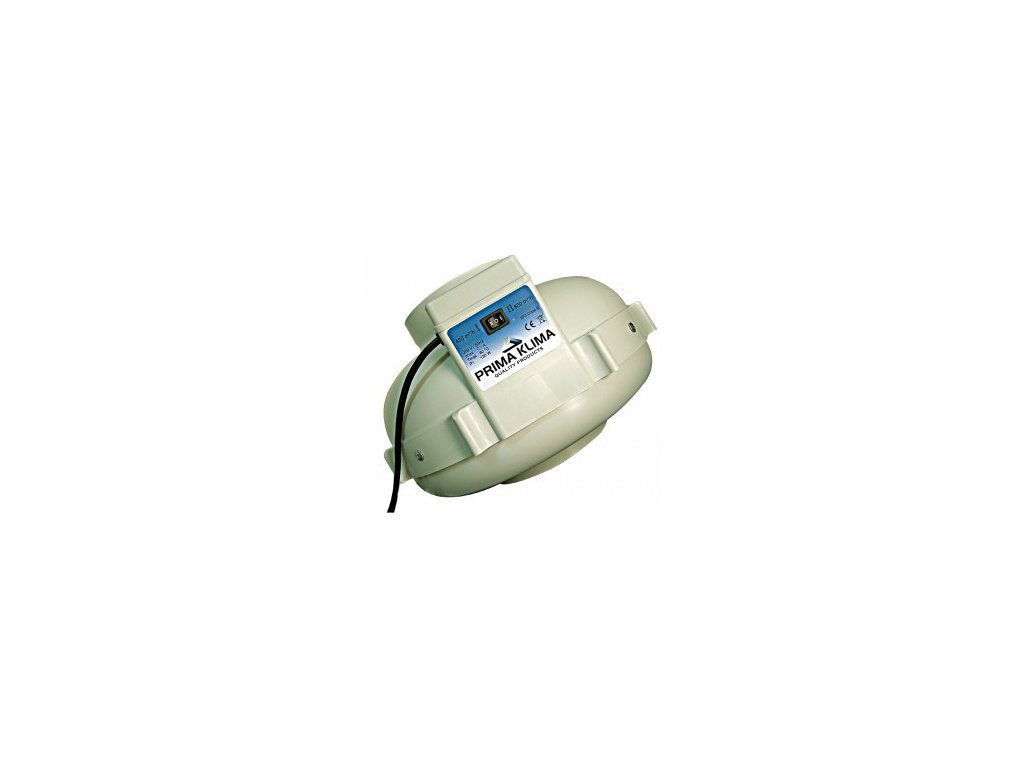

Fan Prima Klima PK150-2 150mm, 390/760m3/h Two-speed
2-speed adjustable fan for 150 mm pipes, 390/760 m3 / h
The Prima Klima PK150-2 is highly efficient Two-speed inline duct fan equipped with an ebm-papst RadiCal centrifugal motor with backward curved blades which has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Available in a 115V version and with alternative connection cables.
⬤ Flange: 150mm
⬤ Max Airflow: 390/760m3/h
⬤ Power: 108W
⬤ Input: 230V 50/60Hz 0.47A
⬤ Tmax: 42°C
⬤ Measurements: 338mm x 233mm (w/h)
⬤ Weight: 3.26Kg (4.30Kg Gross Weight)
⬤ Pallet Quantity: 72 pcs
Features:
Additional parameters
| Category: | PRIMA KLIMA Fans |
|---|---|
| Warranty: | 2 years |
| EAN: | 8594171431227 |
