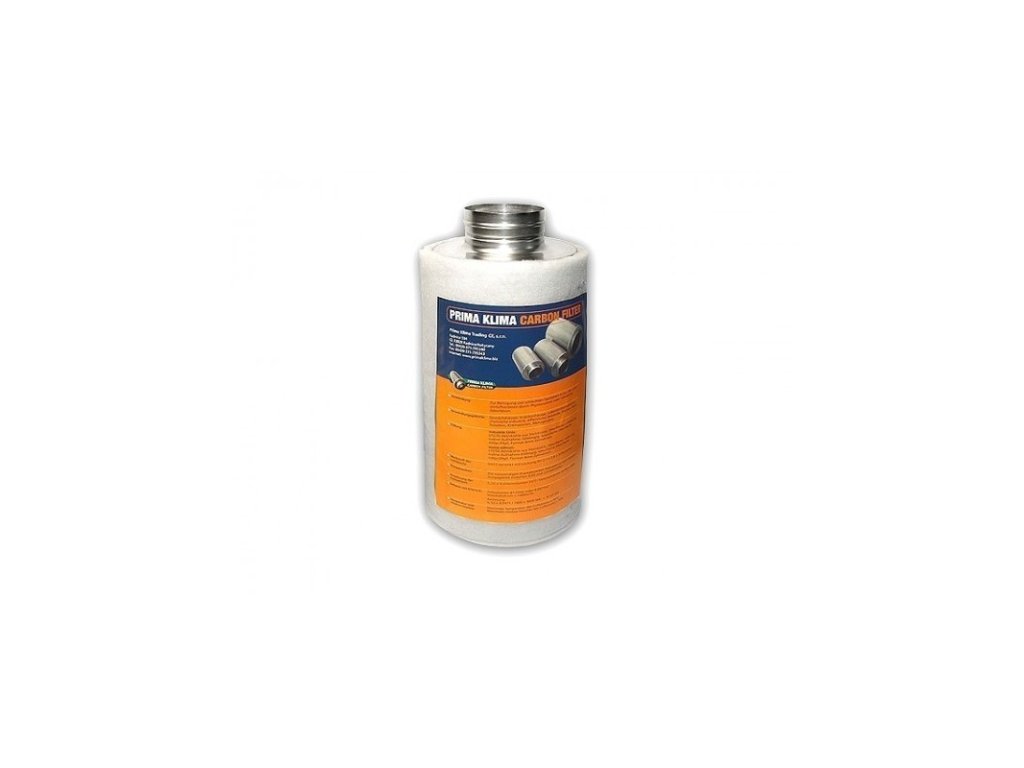

Filter Prima Klima Industry line K1614 - 2400 -3600m3/h, 315mm
Code: 1695Related products
Flexible Aluflex ventilation duct with a large diameter of 315mm is suitable for large-capacity ventilation systems. Length 10 meters.
Tin clutch into the 315 mm diameter circular ventilation duct. Compatible with Aluflex, Sonoflex, Combiflex.
The 315mm circular tin flange is designed to connect a fan to a pipeline or to fit a wall pipeline.
The silencers are used for perfect sounding of the fan and smooth running of the air-conditioning system. For complete sound insulation, use 2 dampers located on each side...
K1613 - professional Odor filter Prima Clima Industry line with maximum output up to 2700m3 / h. Flange 315mm, height 750mm, service life 18 months.
Product detailed description
The Prima Klima Industry Line premium carbon filters are characterised by a remarkably high durability and an incomparable odour adsorption. The filters are refillable and have a 4cm deep bed of first quality, highly activated CTC80-3mm carbon with a active surface area of >1200m2/g. This ensures an exceptionally long contact time between air and carbon, which is highly effective for removing odours. High-quality metal press parts provide maximum stability and durability. The extra-long flange provides a secure connection.
Industry Line Primer Clima,3600m3 / hour, with a line diameter of 315mm. Charged CTC70 charcoal. Height 1000mm, weight 35.3 kg. Suitable for vertical and horizontal operation. With proper maintenance and conditions, the manufacturer guarantees a minimum of 1.5 years of perfect air filtration. All Prima Klim active charcoal filters enable carbon core repainting and reuse. Thanks to their maximum performance, they are a welcome addition to all smelly industrial, agricultural, restaurant and other odor-intensive operations.
Features:
Recommended ventilator: PK300/315, PK300/315-EC
Additional parameters
| Category: | Prima Klima Industry Filters |
|---|---|
| Warranty: | 2 years |
| Activated carbon: | CTC80-3mm 24.5Kg |
| Diameter: | 415mm |
| Filter flow: | up to 4500m3 |
| Flange: | 315mm |
| Incl. pre-filter: | K1714 |
| Length: | 1000mm w/o flange |
| Max Airflow: | 3600m³/h |
| Optimal Airflow: | 2400m³/h |
| Weight: | 32.7Kg |
