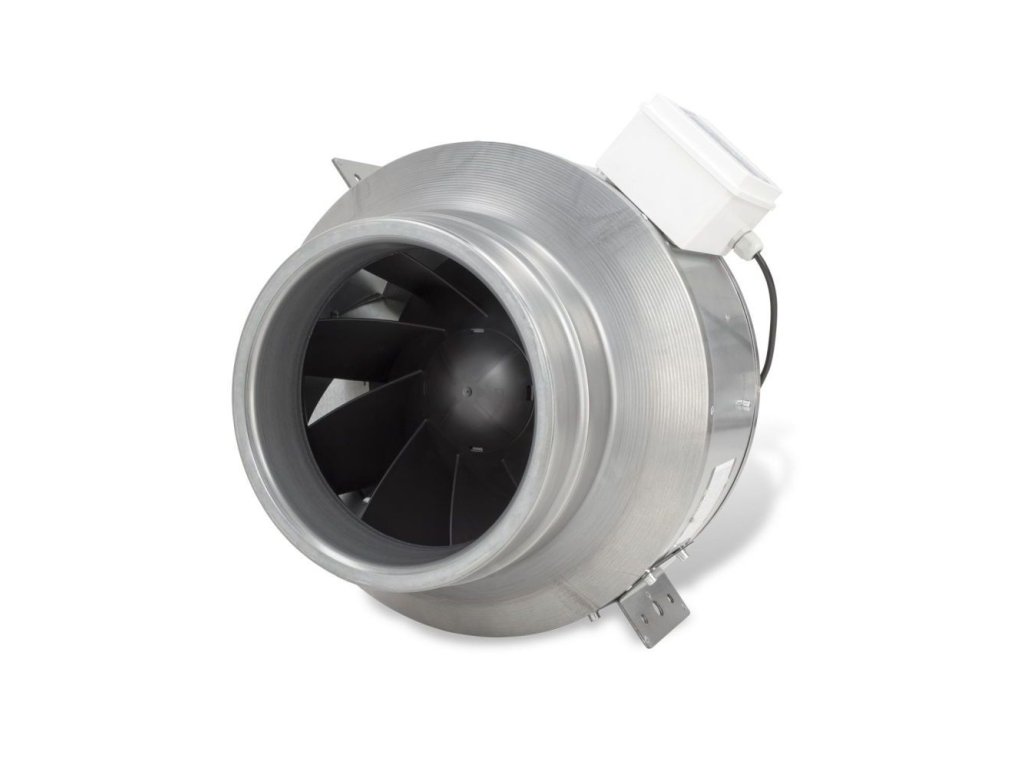

Fan Prima Klima BLUE LINE PK300/315mm, 3200m3/h

Code: 1528
Pre-Order 7-14 days

High-performance Prima Blue Line PK300/315 fan with a diameter of 300-315mm. A continuous and maximum output of 3200 m3 / h is suitable for larger ventilation systems.

Detailed information

Product detailed description

The Prima Klima BLUE LINE PK300/315 is equipped with highly efficient German ZIEHL-ABEGG motor with incredible Airflow of 3200m3/h and a pressure build-up of up to 650Pa with only 280W and just 1350 rev/min. BLUE LINE ventilator is built for continuous non-stop operation (over 80.000 hours at full speed). Fan can operate at low levels of noise (68dB) and surpasses by far the ERP2015 Energy Efficiency Directive. Pre-installed, robust mounitng brackets allow a perfect positioning in the room.


  ZIEHL-ABEGG motor/impeller0
  Low noise emissions (68dB)
  Non-stop operation, over 80.000 hours
  Speed controllable with thermal circuit breaker
  Junction box with Schuko power cable

Additional parameters

Category: PRIMA KLIMA Blue Line Fans
Warranty: 2 years
Fan flow: above 2500 m3/h
Flange: 300/315mm
Input: 230V 50/60Hz 1,3A
Max Airflow: 3200m³/h
Measurements: 522mm x 470mm (w/h)
Power: 290W
Tmax: 42°C
Weight: 14.20Kg (15.24Kg Gross Weight)
