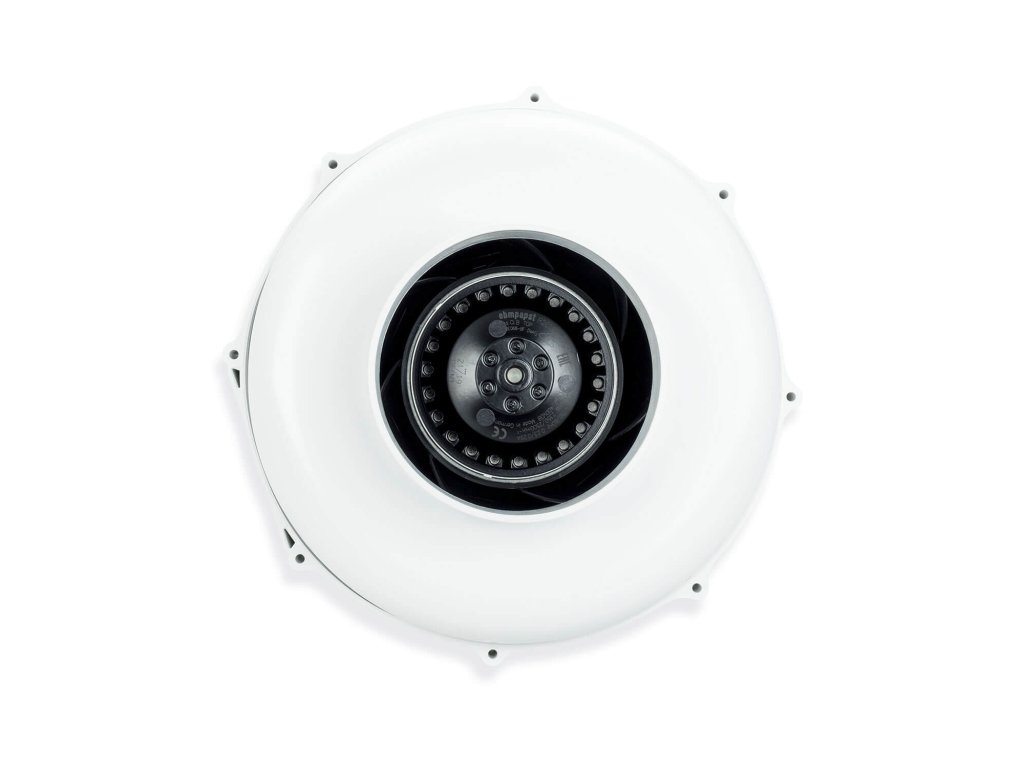

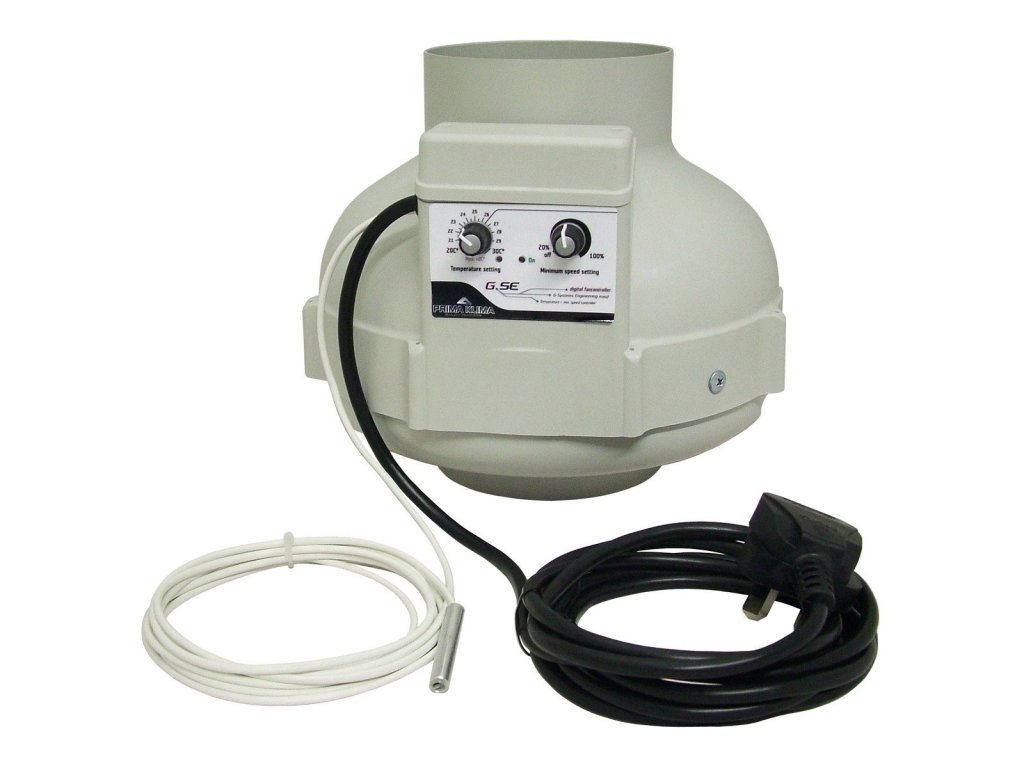

Fan Prima Klima PK125-TC TEMP CTRL, 400m3/h

Professional Fan Prima Klima PK125-TC  with a top Swiss engine and components produced in Europe. Humidity and temperature control.

Availability Stock in Europe
Delivery to:
13.12.2024
Code: 1521
€171,48
Fan Prima Klima PK125-TC TEMP CTRL, 400m3/h

The Prima Klima PK125-TC is highly efficient temparature controlled inline duct fan equipped with an ebm-papst RadiCal centrifugal motor or MES AC motor with backward curved blades which has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Available in a 115V version and with alternative connection cables.

All TEMP CTRL Prima Klima fans are quiet and equipped with a humidity sensor. High quality and reliable MES engines with retrofitted impellers provide up to 15% greater ventilation performance than standard fans. Each TEMP CTRL Fan is supplied with a moisture sensor. Ideal solution for maintaining stable temperatures in rooms where outdoor air is supplied. Cabling needs to be purchased.

Features:

  ebm-papst RadiCal/MES AC motor
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Temperature and speed control adjustable
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing







Additional parameters

Category: PRIMA KLIMA AC Fans
Warranty: 2 years
Flange: 125mm
Max Airflow: 400m3/h
Fan flow: up to 500 m3/h
Input: 230V 50/60Hz 0.26A
Measurements: 244mm x 220mm (w/h)
Power: 60W
Tmax: 42°C
Weight: 2.42Kg (3.06Kg Gross Weight)
