Fan Prima Klima PK125EC-TC TEMP CTRL, 680m3/h

Code: 1587
Stock in Europe

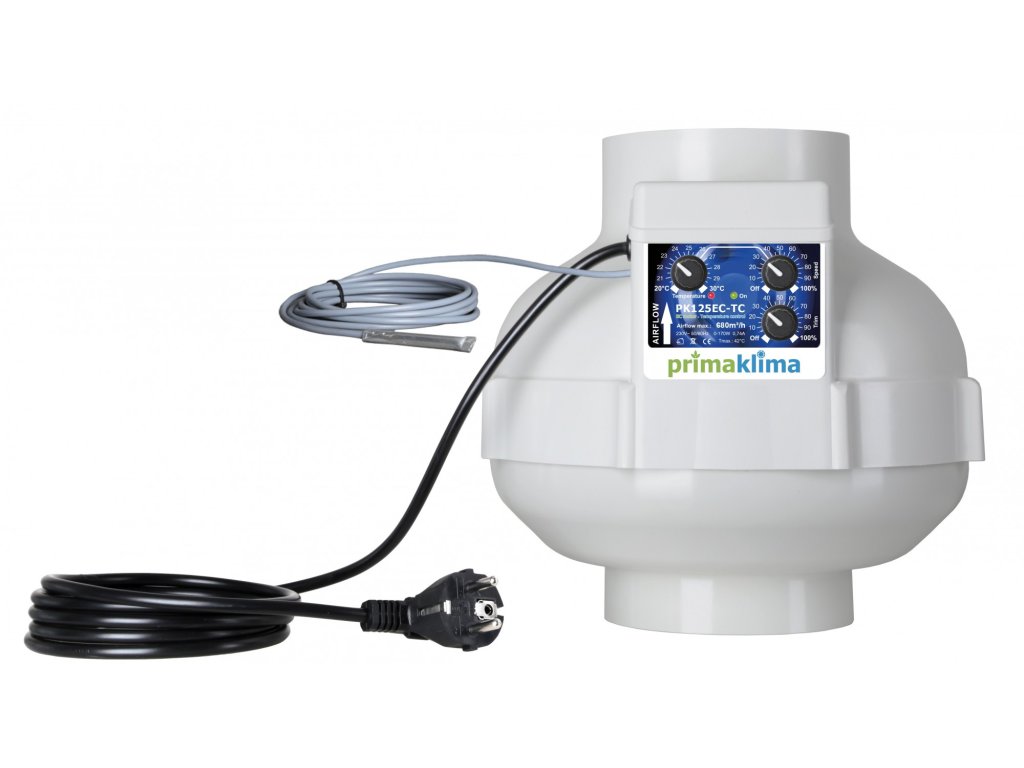

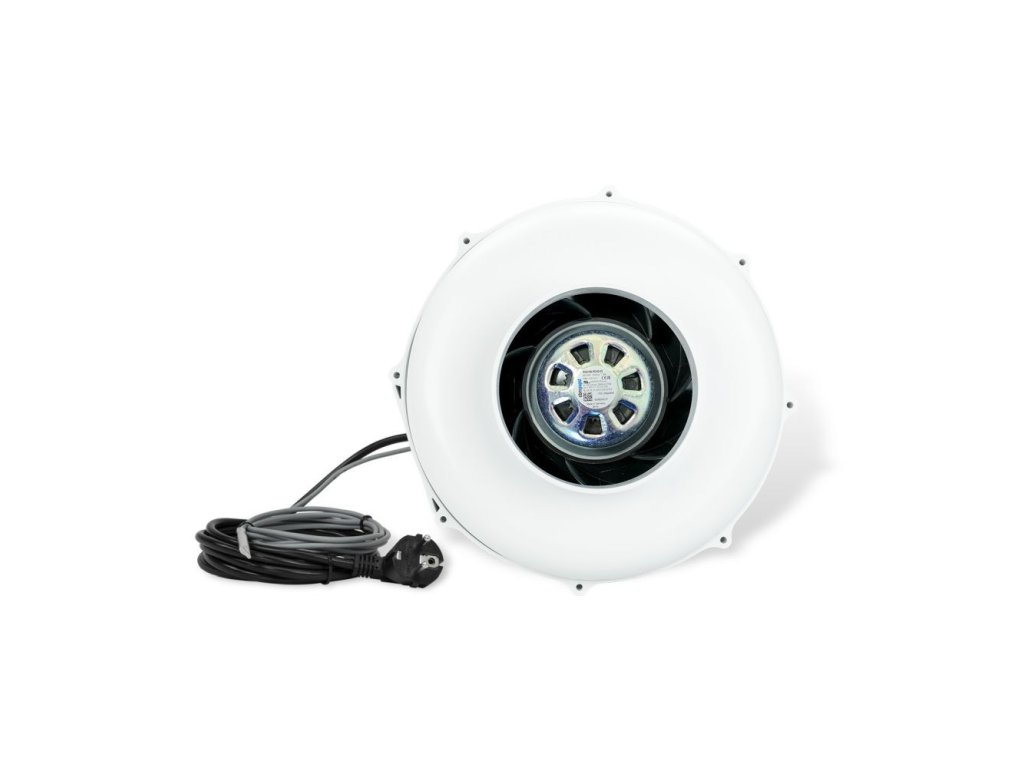

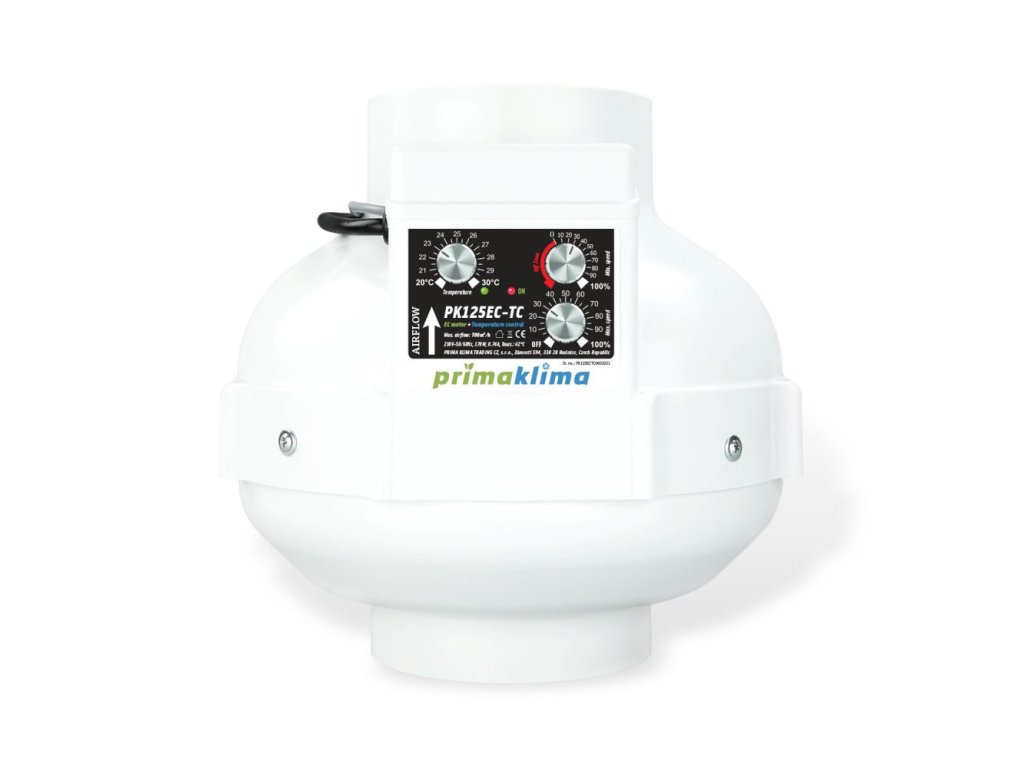

Powerful Fan Prima Klima PK125EC-TC with German EC engine, 125mm diameter and speed and temperature control.

Detailed information

Product detailed description

The Prima Klima PK125EC-TC is small highly efficient inline duct fan equipped with an premium ZIEHL-ABEGG motor with very low power consumption. Device is extremely silent and energy efficient thanks to EC-Technology. The entire housing is made of high impact resistant, flame proof polyamide (nylon). The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position.


  Premium ZIEHL-ABEGG motor
  Temperature and speed control adjustable
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing


Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: 500 - 1000 m3/h
Flange: 125mm
Input: 230V 50/60Hz 0.74A
Max Airflow: 680m3/h
Measurements: 244mm x 244mm (w/h)
Power: 0-170W
Tmax: 42°C
Weight: 2.46Kg (3.04Kg Gross Weight)
