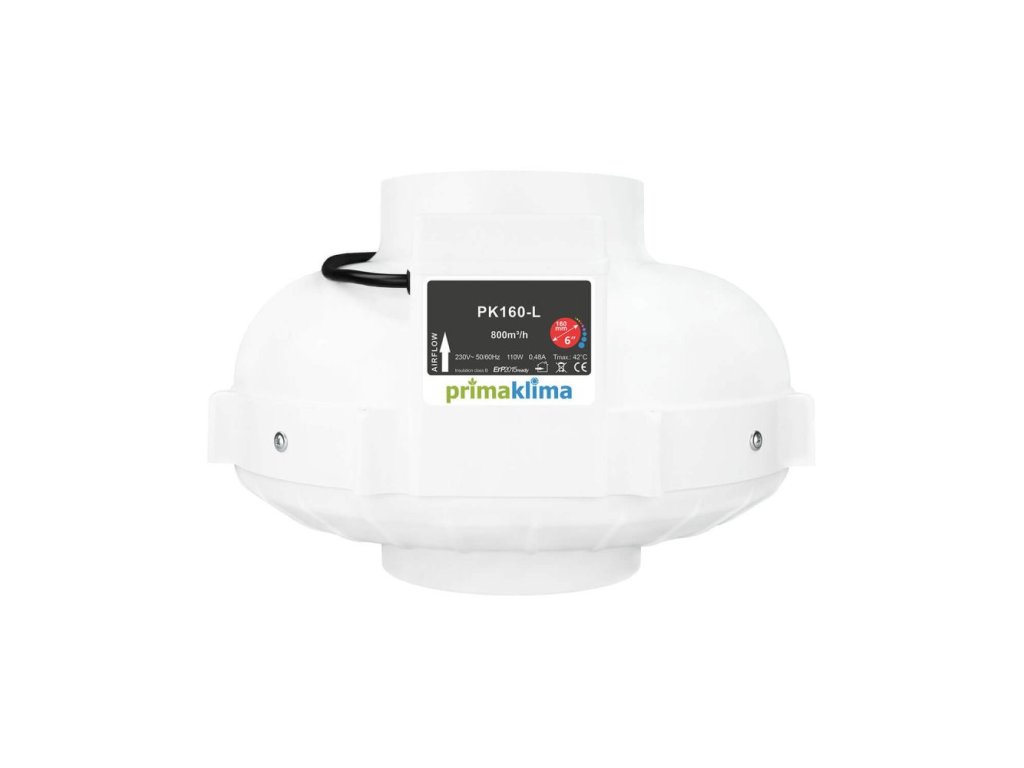

Fan Prima Klima PK160-L, 800m3/h

Code: 1525
Stock in Europe

Premium Speed Fan PK160-L with a flow rate of 800m3 / h. Quality Swiss engine, low noise and low consumption.

Detailed information

Product detailed description

The Prima Klima PK160-L is highly efficient inline duct fan equipped with an MES AC motor with backward curved blades which has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Without cabling!


  MES AC motor
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing

Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: 500 - 1000 m3/h
Flange: 160mm
Input: 230V 50/60Hz 0.48A
Max Airflow: 800m3/h
Measurements: 340mm x 232mm (w/h)
Power: 110W
Tmax: 42°C
Weight: 3.24Kg (4.18Kg Gross Weight)
