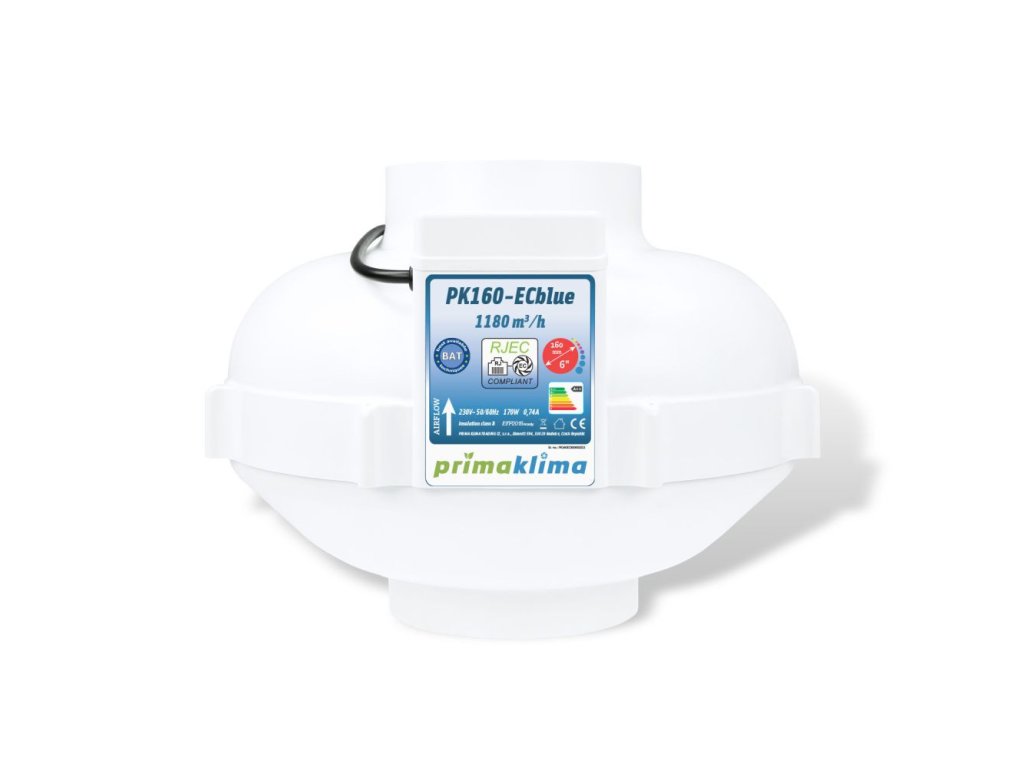

Fan Prima Klima PK160-ECblue 160mm, 1180 m3 / h - EC motor

Code: 8904
€329,92
Stock in Europe

Prima Klima fan PK160-ECblue with EC motor and power control made for maximum optimization of costs / benefits.

Detailed information

Product detailed description

The Prima Klima PK160-ECblue is small highly efficient inline duct fan equipped with an premium ZIEHL-ABEGG motor with very low power consumption. Device is extremely silent and energy efficient thanks to EC-Technology. The entire housing is made of high impact resistant, flame proof polyamide (nylon).The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position.

Features:

  Premium ZIEHL-ABEGG motor
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
 Thermoswitch protection
 Aerodynamically optimized shape
  Impact resistant and durable housing
 Speed controllable 0-100%
 No growl noise from motor
  Without loss of power



Recommended accessory: ECTC-1M-Digital remote controller.

Additional parameters

Category: PRIMA KLIMA EC Fans
Warranty: 2 years
Fan flow: 1000 - 1500 m3/h
Flange: 160mm
Input: 230V 50/60Hz 0.74A
Max Airflow: 1180m³/h
Measurements: 340mm x 242mm (w/h)
Power: 0-170W
Tmax: 42°C
Weight: 3.34Kg (4.32Kg Gross Weight)
