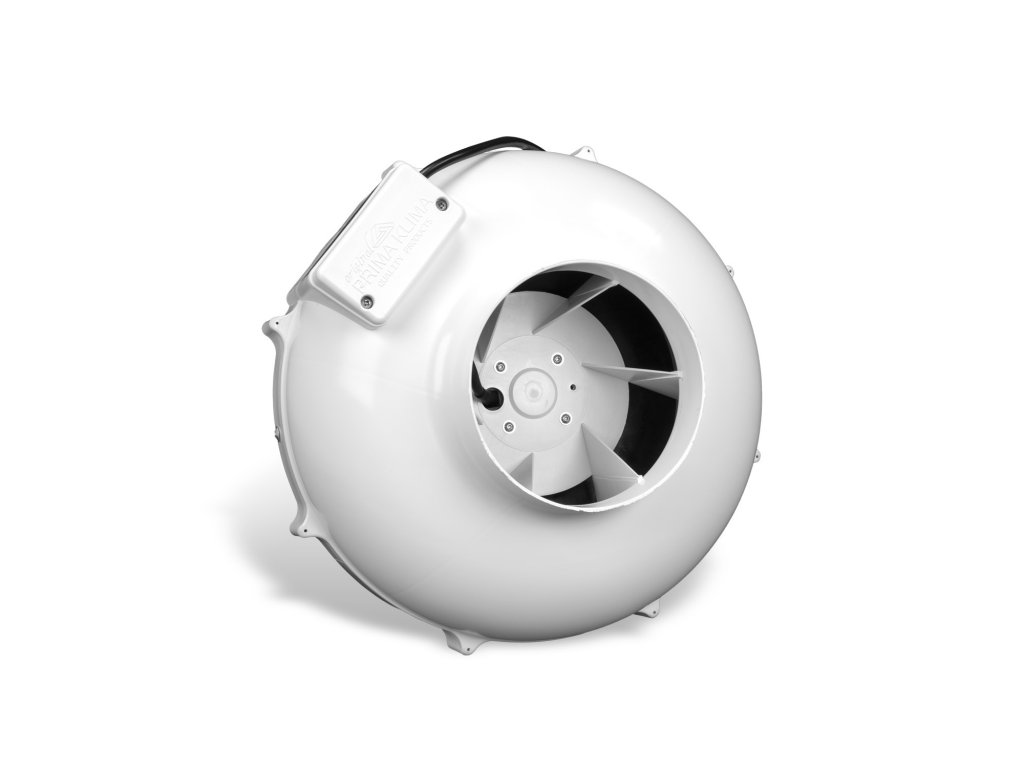

Fan Prima Klima PK160-2, 2 speeds, 420/800m3/h

Powerful two-speed fan Prima Klima PK160-2 with maximum output up to 800m3 / h. Premium Swiss engine, European production, very quiet operation.

Availability Stock in Europe
Delivery to:
11.7.2022
Code: 1520
€121,38
Fan Prima Klima PK160-2, 2 speeds, 420/800m3/h

The Prima Klima PK160-2 is highly efficient Two-speed inline duct fan equipped with an ebm-papst RadiCal centrifugal motor with backward curved blades which has been optimally adapted to the housing. The device is extremely silent when is switched to low speed. The entire housing is made of high impact resistant, flame proof polyamide (nylon). Maintance free long lasting ball bearings contribute to especially smooth running of the motor. The control system, the connections and the capacitor are fully integrated into the housing. With the use of the supplied mounting bracket the fan can be easily and safely attached to the wall or ceiling in any position. Without cabling!

Features:

  ebm-papst RadiCal motor
  Impeller with backward curved blades
  Low power consumption
  Low noise emissions
  Aerodynamically optimized shape
  Impact resistant and durable housing
  The connection and the control system in the housing



Additional parameters

Category: PRIMA KLIMA Fans
Warranty: 2 years
Fan flow: 500 - 1000 m3/h, up to 500 m3/h
Flange: 160mm
Input: 230V 50/60Hz 0.47A
Max Airflow: 420/800m3/h
Measurements: 340mm x 232mm (w/h)
Power: 108W
Tmax: 42°C
Weight: 3.32Kg (4.28Kg Gross Weight)
