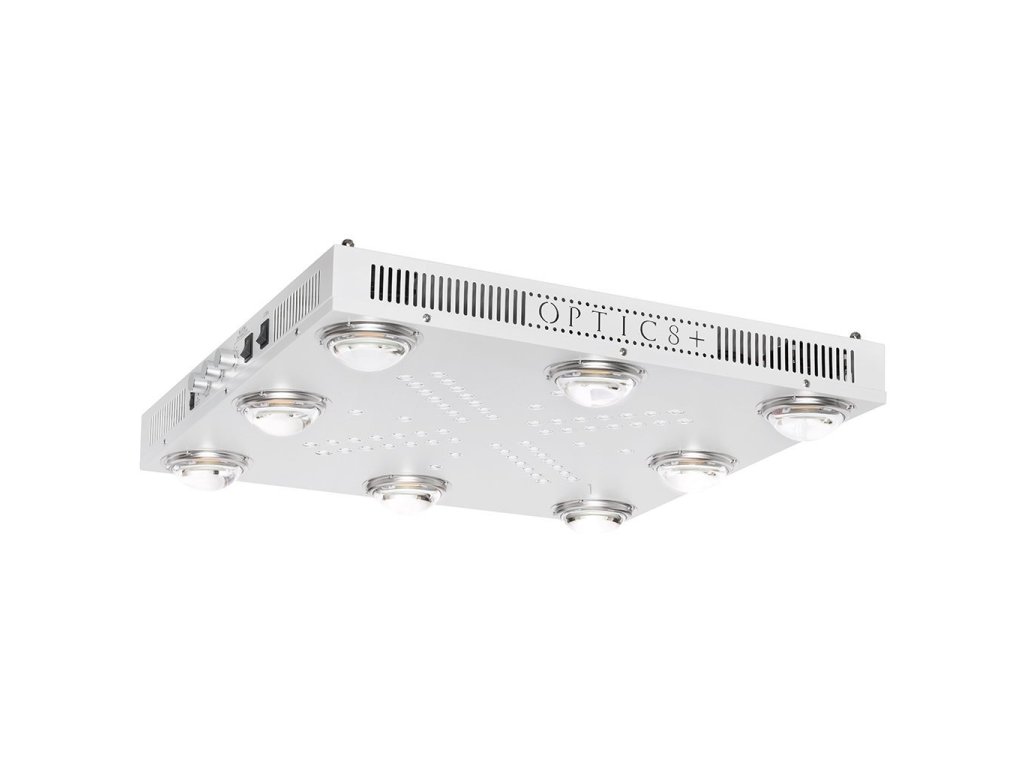

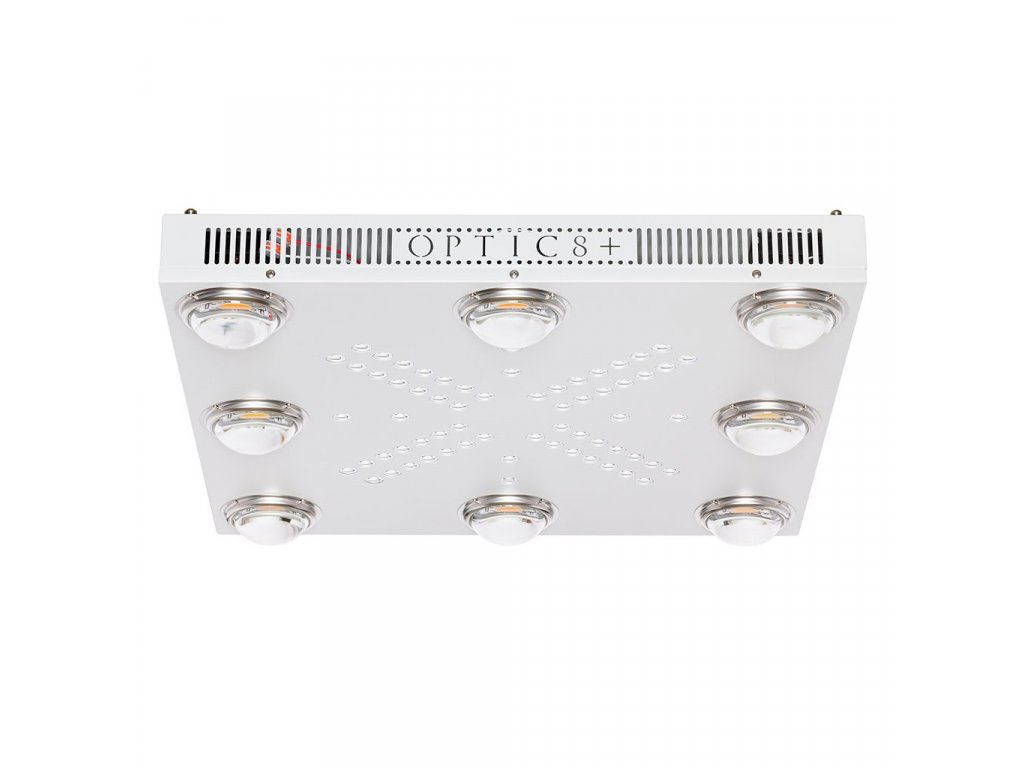

OPTIC 8+ COB LED GROW LIGHT 500W (UV/IR) 3500k COBs

Code: 93
€1 999 –20 %
optic 8 final w 1024x1024@2x
€1 999 –20 % €1 599 €1 321,49 excl. VAT
In stock (> 5 pcs)
Delivery to:
24.10.2018

Optic LED has now seamlessly integrated eight of CREE's largest most efficient COBs (XLAMP CXB3590) with industry leading glass optical projection lenses to give you unprecedented light penetration with the highest PPFD of any 500 watt lighting system for a 4' x 4' area. The combination of these two technologies combined with proprietary blend of 3 watt Osram LEDs will give you significantly improved grams per watt yield and significant increases in Trichome density and overall quality of trichomes. Growing with the Optic 8+ you can expect to yield up to 2.5 pounds which is an incredible 2.25 grams per watt.

Detailed information

Product detailed description

HID equivalent: 1000 watt DE HPS

LEDs: CREE COBs & OSRAM Secondary Array

  • 8 x CREE CXB3590 COB LEDs
  • 6 x 3500k Daylight White COBs
  • 2 x 5000k Cool White COBs
  • Each COB is 132w max & driven 50w continuous
  • 32 x 3-watt OSRAM ultra efficient leds with glass projection lenses

Optics: 90 degree Optical Projection Lens Directs light downwards, magnifies par and increases canopy penetration by up to 200%

Drivers: Meanwell (Industry Best)

Spectrum: Full-spectrum + infrared + Ultra Violet

Spectrum on OPTIC 8+ @full power



Spectrum of "Bloom Enhancer" (50w Osram Array & Ultra Violet - No COBs)



*PPFD, PAR OUTPUT & U/MOLS:

18" Hanging Height for 4' x 4' area

PAR: 1828 u/mols at center of footprint

PPFD: 693.78

Par Data for 4' x 4' Coverage Footprint @18"

24" Hanging Height for 4' x 4' area

PAR: 1420 u/mols at center of footprint

PPFD: 619.87

Par Data for 4' x 4' Coverage Footprint @24"

PPFD Test Video for 24" Hanging Height







Recommended Coverage area & hanging height:

  • Veg: 5' x 5' @30"
  • Flower: 4' x 4' @18"- 24"
  • Max Flower Coverage 5' x 5' (with 120 degree Lens Kit)

Recommended hanging height:

  • Veg: 24"-30"
  • Flower: 18" 24"

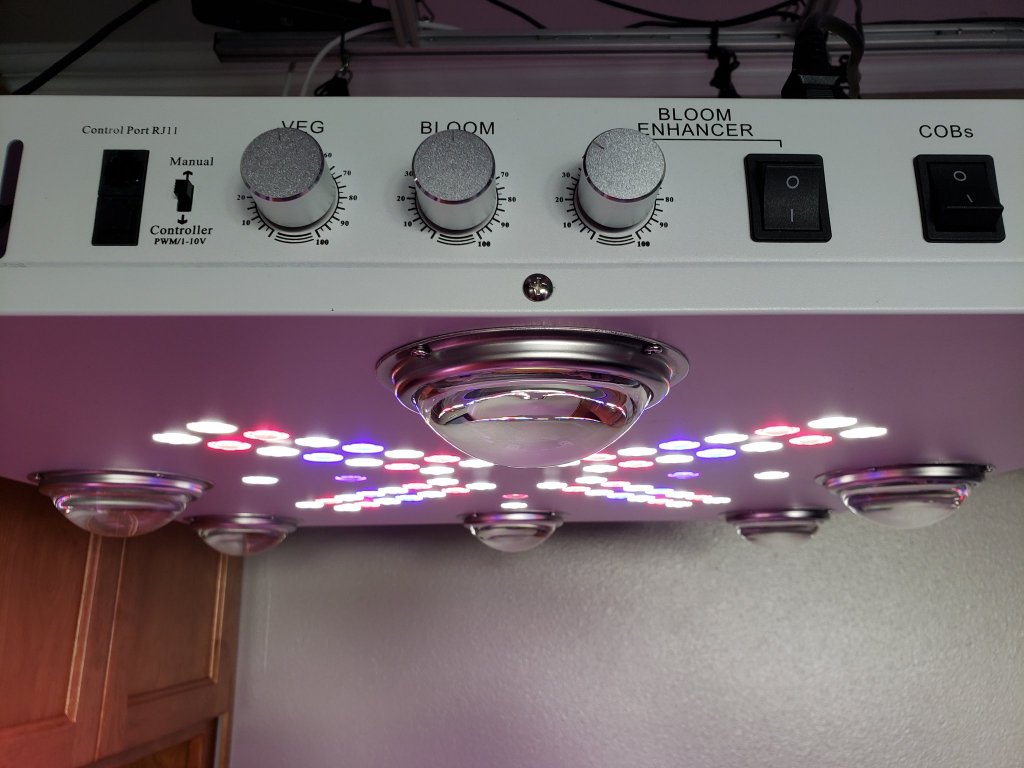

Light Controls:

Dimmability: 3 Independent Dimmers

VEG: 4 COBS onlyControls two 5000k COBS & two 3500k COBs.

BLOOM: 4 COBs only, Controls four 3500k COBs.

BLOOM ENHANCER: 32 pcs 3w diodes, Controls UV & Osram secondary led array.

Switches:

Switch#1: ON/OFF

Switch#2: Bloom Enhancer

Harvest: Up to 2.5 lbs

Grams Per watt yield: Up to 2.25

Thermal management: 9 x cooling fans, Aluminum heat-sinks

Dimensions: 26 3/4" x 26 1/4"

Weight: 34 Pounds

Operating/Input Voltage: 100-265VAC

Amperage: 5-1.9Amps

Product includes: 120v power cord, Ratchet straps, Heavy duty hanging hooks, Heavy duty hanging cables & LED Fixture. (120v-240v power cords available)(we automatically ship the correct power cord for your country)

Recommended for:

  • Grow tents(4x4) (5x5) (8x8) (10x10)
  • Grow rooms (All Sizes)
  • Full-cycle growing from seedling to flower
  • Soil, hydroponic, aeroponic, or aquaponic systems

Manufacturer's Warranty: 5 years

*Taxes & Duties May be required on International shipments.





Additional parameters

Category: OPTICled
Warranty: 5 years
Coverage area: > 150x150cm
Replacement for: 1000w HPS
? What do you prefer?: Energy saving
? Type: Cob grow lights, Led Grow Panel
Stage: Flower & Grow
