X4 COB Array 216w - 336w (UV/IR) 3500k COBs
X4 COB ARRAY is a fully customizable COB Array that allows you to adjust each COB independently to give you the light distribution and intensity you desire
X4 COB ARRAY is a fully customizable COB Array that allows you to adjust each COB independently to give you the light distribution and intensity you desire.
Plug and play ready high yielding setup gives you an easy to use system that utilizes the best of modern day LED technology making it easier for you to get the amazing results your looking for. The 54 watt Optic 1 paired with the FAR RED Bloom Enhancer delivers industry best PPFD under 400 watts in a 3x3 (1m) area boasting an incredible 901.
Options for Your COB Array:
- FOUR Optic 1 54 watt COBs;
- ONE Far Red Bloom Enhancer.
- Frame is not included.
X4 COB Array Specifications:
- COBs: CREE XLAMP CXB-3590 (3500k Daylight White)
- Bloom Enhancers: OSRAM 3W LEDs
- Bloom Enhancer Lenses: 120 degree Crystal Clear Wide Beam Lenses
- Bloom Enhancer Driver: Meanwell 120 Watt Dimmable Driver
- Optic 1 Drivers: Meanwell 60 Watt Driver
- Dimmer: 10% - 100% Dimmability (Bloom Enhancer Only)
- Thermal management: Passive Cooling from Overbuilt heatsinks
- PPF/Watt: 2.45 umol/J (bloom Enhancer) / COBs 2.15 umol/J
- Actual Power Draw: 336 watt max draw
- LEDs Max Power: 744 Watts
- Grams Per Watt: Up to 2.25
- Yield: Up to 756 grams / 27 ounces (1.68 lbs)
(Optic 1 and Optic 1XL yields increased to 2.25 Grams Per Watt )
- 3' x 3' area (.9m x .9m)
- Max 3.3' x 3.3' (1m x 1m)
- Flower: 12"- 24" (.3m - .6m)
- Veg: 24"-36" (.6m - .9m)
- Seedling: 36"+ (.9m+)
PPFD FAR RED BLOOM ENHANCER ARRAY (Average PAR):
2' x 2' Area @12" (.3m) Hanging Height PPFD: 810
(Tested with Apogee MQ-500 PAR Meter)
PAR Meter Reading @12" (center of footprint)
PPFD for X4 COB Array 15" Hanging Height (Average PAR): 901
PPFD for X4 COB Array 18" Hanging Height (Average PAR): 810
Spectrum of Bloom Enhancer:
Full Spectrum + FAR RED + UV & IR
Spectrum of Bloom Enhancer & COBs Combined:
(Full Spectrum + FAR RED + Ultra Violet & Infrared)
- Lifetime: 100,000 Hours
- Warranty: Lifetime Warranty
- Shipping: Free Shipping to over 100 countries

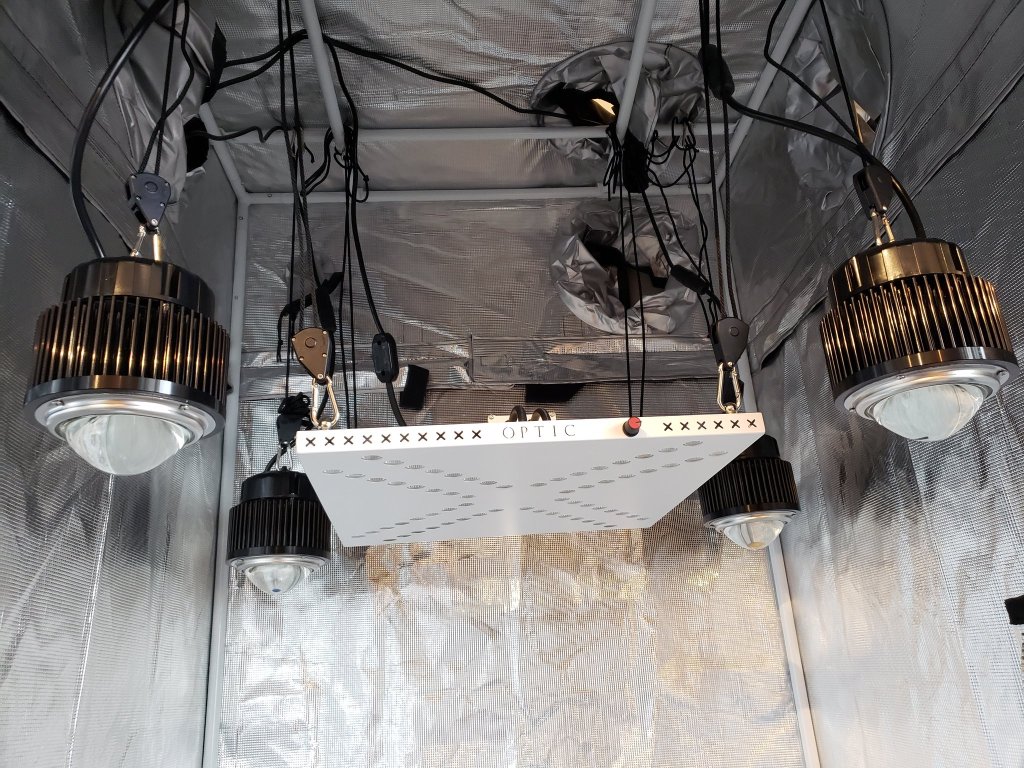

- Light Fixture: Four Optic 1XL + Far Red Bloom Enhancer
- Cables: 6 Foot attached power cord with On/Off Switch
- Plug: USA, UK, EURO, Canada, Africa, Australia & many more
- (we automatically ship the correct power cord for your country)
- Dimming: On/Off Switch & 10% - 100% Dimmability
- Hanger: Rope Ratchets included for all fixtures
- Recommended for: Grow Tents, Grow Rooms, All Grow Spaces
Note: All products are shipped from the European Union. All lights have an EU plug, we only ship UK plugs to England and Malta.
